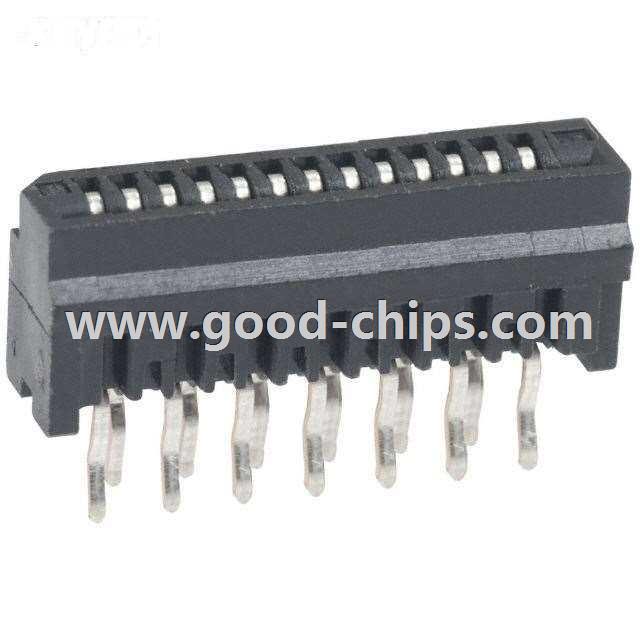

| Manufacturer Part Number: | HLW13S-2C7LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 13 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HLW13S-2C7LF Datasheet |
| Internal Part Number | 898-HLW13S-2C7LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Flat Flex Connector Overview | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | HLW-S | |
| Packaging | Tray | |
| Part Status | Active | |
| Flat Flex Type | FFC, FPC | |
| Mounting Type | Through Hole | |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | |
| Number of Positions | 13 | |
| Pitch | 0.039" (1.00mm) | |
| Termination | Kinked Pin | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.232" (5.90mm) | |
| Locking Feature | - | |
| Cable End Type | Straight or Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Actuator Material | - | |
| Features | - | |
| Voltage Rating | 100V | |
| Operating Temperature | -55°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 1A | |
| Standard Package | 3,570 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HLW13S-2C7LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HLW13S-2C7LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of HLW13S-2C7LF is new and unused, you can buy HLW13S-2C7LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLW13S-2C7LF.
