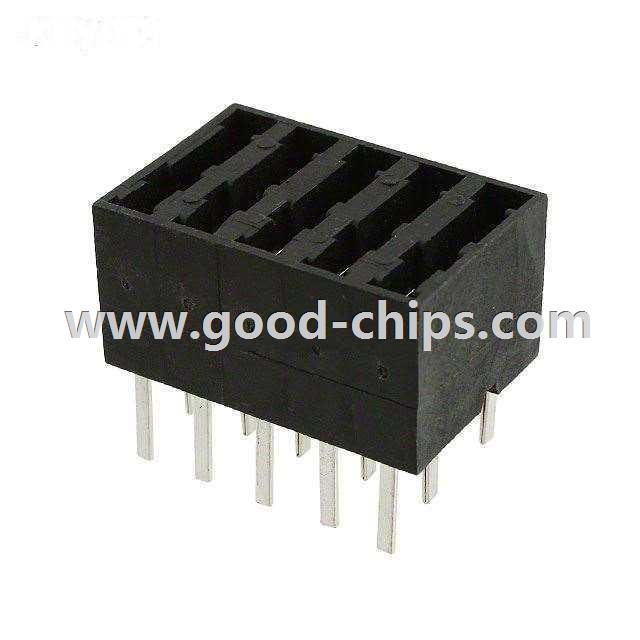

| Manufacturer Part Number: | HLS-05-ML |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuseholders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BLOCK BLADE 125V 15A PCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HLS-05-ML Datasheet |
| Internal Part Number | 898-HLS-05-ML | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Circuit Protection | |
| Family | Fuseholders | |
| Manufacturer | Eaton | |
| Series | HLS | |
| Part Status | Active | |
| Fuseholder Type | Block | |
| Fuse Type | Indicating Fuse | |
| For Use With/Related Products | GMT Indicating | |
| Fuse Size | 0.688" L x 0.127" W x 0.81" H (17.48mm x 3.23mm x 20.57mm) | |
| Number of Circuits | 5 | |
| Voltage | 125VAC, 60VDC | |
| Current Rating | 15A | |
| Mounting Type | PCB | |
| Orientation | Vertical | |
| Termination Style | PC Pin | |
| Contact Material | Copper | |
| Contact Finish | Tin | |
| Standard Package | 240 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HLS-05-ML | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HLS-05-ML is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of HLS-05-ML is new and unused, you can buy HLS-05-ML Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLS-05-ML.
