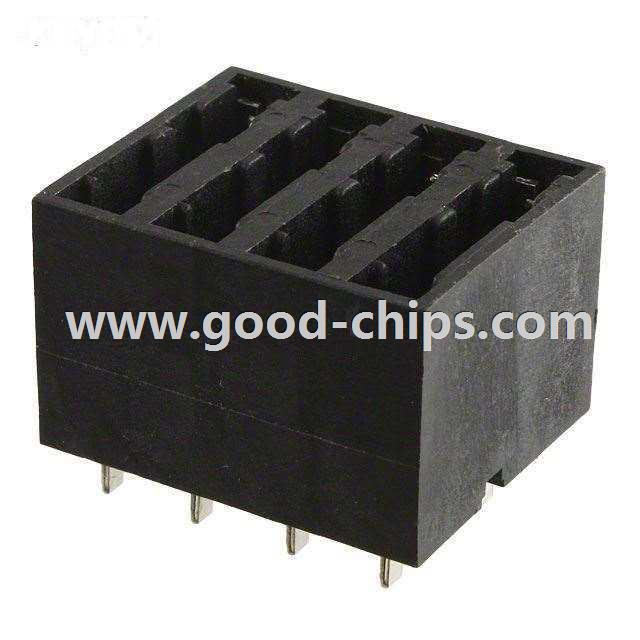

Manufacturer Part Number: | HLS-04-SL |
---|---|
Manufacturer: | Eaton |
Product Category: | Fuseholders |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE BLOCK BLADE 125V 15A PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HLS-04-SL Datasheet |
Internal Part Number | 898-HLS-04-SL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | Fuseholders | |
Manufacturer | Eaton | |
Series | HLS | |
Part Status | Active | |
Fuseholder Type | Block | |
Fuse Type | Indicating Fuse | |
For Use With/Related Products | GMT Indicating | |
Fuse Size | 0.688" L x 0.127" W x 0.81" H (17.48mm x 3.23mm x 20.57mm) | |
Number of Circuits | 4 | |
Voltage | 125VAC, 60VDC | |
Current Rating | 15A | |
Mounting Type | PCB | |
Orientation | Vertical | |
Termination Style | PC Pin | |
Contact Material | Copper | |
Contact Finish | Tin | |
Standard Package | 300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HLS-04-SL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HLS-04-SL is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of HLS-04-SL is new and unused, you can buy HLS-04-SL Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLS-04-SL.
