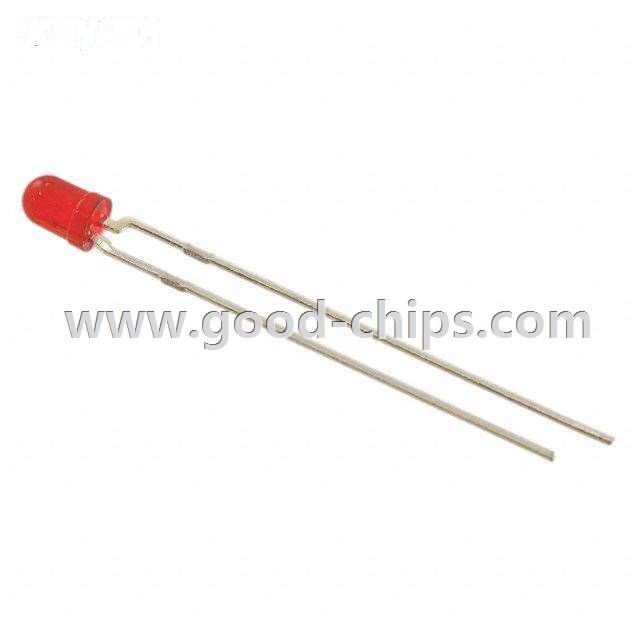

| Manufacturer Part Number: | HLMP1301 |
|---|---|
| Manufacturer: | Everlight Electronics Co Ltd |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9295 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red LED Indication - Discrete 2V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HLMP1301 Datasheet |
| Internal Part Number | 898-HLMP1301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 3mm Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Everlight Electronics Co Ltd | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 2.5mcd | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 3.00mm | |
| Voltage - Forward (Vf) (Typ) | 2V | |
| Current - Test | 20mA | |
| Viewing Angle | 90° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | - | |
| Wavelength - Peak | 635nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | 3mm | |
| Size / Dimension | - | |
| Height (Max) | 6.30mm | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HLMP1301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HLMP1301 is in stock for immediate shipping now. We are the distributor of Everlight Electronics Co Ltd all series components. The condition of HLMP1301 is new and unused, you can buy HLMP1301 Everlight Electronics Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLMP1301.
