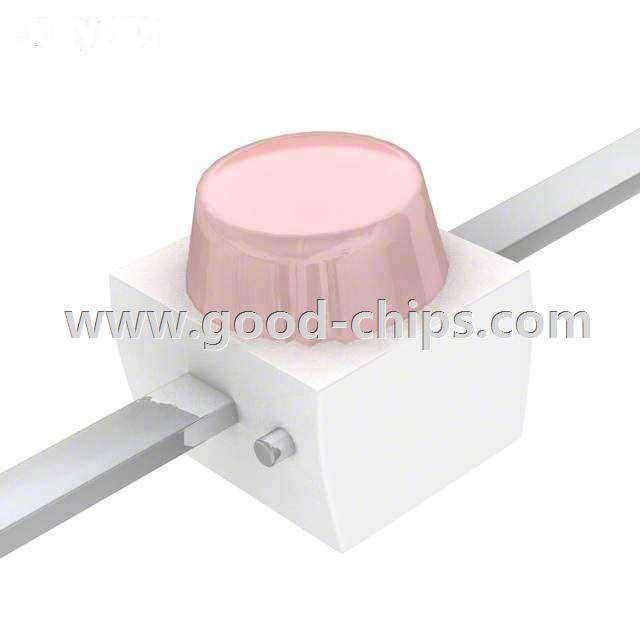

| Manufacturer Part Number: | HLMP-P156-EG031 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 644nm LED Indication - Discrete 1.6V 2-SMD, Z-Bend |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HLMP-P156-EG031 Datasheet |
| Internal Part Number | 898-HLMP-P156-EG031 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Round with Flat Top LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 2mcd | |
| Lens Style/Size | Round with Flat Top, 1.78mm | |
| Voltage - Forward (Vf) (Typ) | 1.6V | |
| Current - Test | 0.5mA | |
| Viewing Angle | 75° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 644nm | |
| Wavelength - Peak | 654nm | |
| Features | - | |
| Package / Case | 2-SMD, Z-Bend | |
| Supplier Device Package | Z-Bend | |
| Size / Dimension | 2.09mm L x 2.21mm W | |
| Height (Max) | 2.44mm | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HLMP-P156-EG031 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HLMP-P156-EG031 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HLMP-P156-EG031 is new and unused, you can buy HLMP-P156-EG031 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLMP-P156-EG031.
