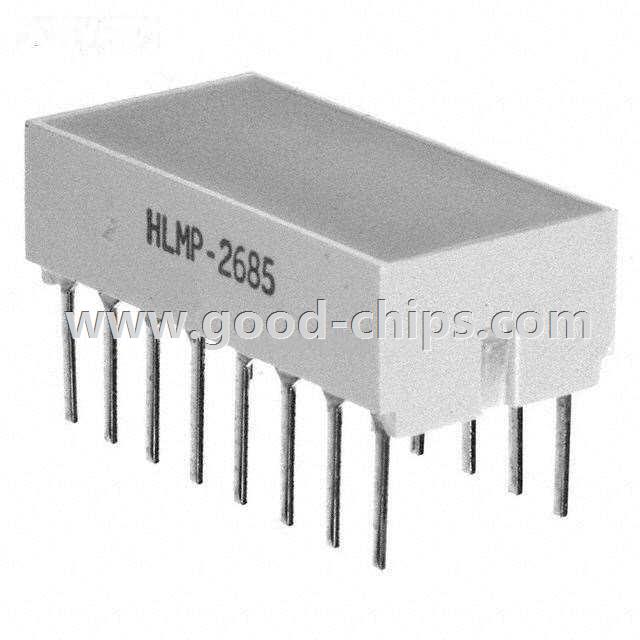

| Manufacturer Part Number: | HLMP-2685-EF000 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 9047 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Circuit Board Indicator Bar - Single, DIP Red 2.6V 30mA Rectangle with Flat Top, 19.05mm x 8.89mm Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HLMP-2685-EF000 Datasheet |
| Internal Part Number | 898-HLMP-2685-EF000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Alternate Scrambler/Painter 12/Nov/2014 | |
| Online Catalog | HLCP-X100 and HLMP-2XXX Series | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Broadcom Limited | |
| Series | HLMP-2685 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Wavelength - Peak | 635nm | |
| Configuration | Bar - Single, DIP | |
| Current | 30mA | |
| Millicandela Rating | 80mcd | |
| Viewing Angle | - | |
| Lens Type | - | |
| Lens Style/Size | Rectangle with Flat Top, 19.05mm x 8.89mm | |
| Voltage Rating | 2.6V | |
| Mounting Type | Through Hole | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HLMP-2685-EF000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HLMP-2685-EF000 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HLMP-2685-EF000 is new and unused, you can buy HLMP-2685-EF000 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLMP-2685-EF000.
