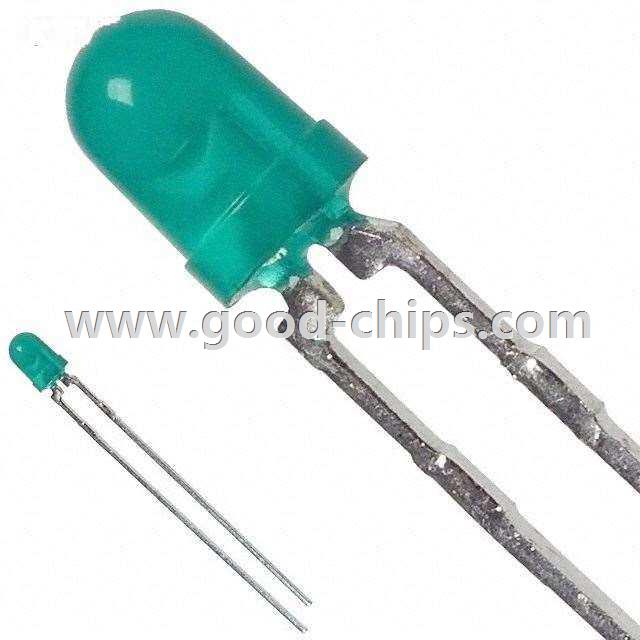

Manufacturer Part Number: | HLMP-1503 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | LED Indication - Discrete |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Green 569nm LED Indication - Discrete 2.1V Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HLMP-1503 Datasheet |
Internal Part Number | 898-HLMP-1503 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 3mm, T-1 Round with Domed Top LED Lamps | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Color | Green | |
Lens Color | Green | |
Lens Transparency | Diffused | |
Millicandela Rating | 1mcd | |
Lens Style/Size | Round with Domed Top, 3mm (T-1), 2.93mm | |
Voltage - Forward (Vf) (Typ) | 2.1V | |
Current - Test | 10mA | |
Viewing Angle | 60° | |
Mounting Type | Through Hole | |
Wavelength - Dominant | 569nm | |
Wavelength - Peak | 565nm | |
Features | - | |
Package / Case | Radial | |
Supplier Device Package | T-1 | |
Size / Dimension | - | |
Height (Max) | 6.35mm | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HLMP-1503 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HLMP-1503 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HLMP-1503 is new and unused, you can buy HLMP-1503 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLMP-1503.
