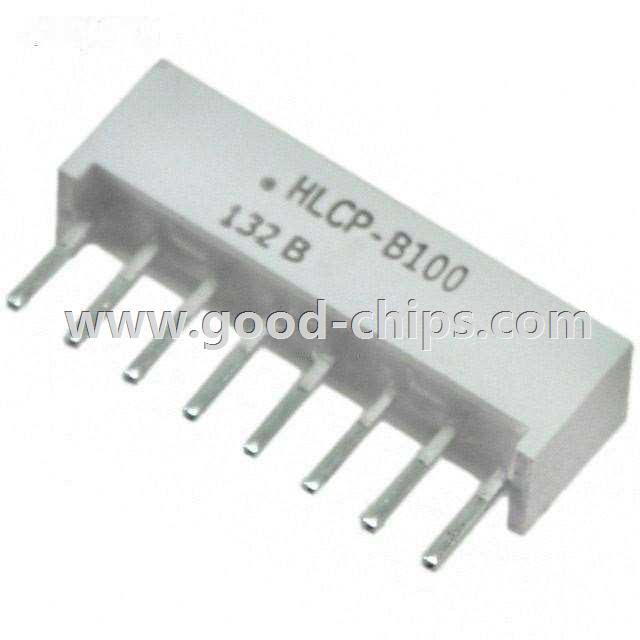

Manufacturer Part Number: | HLCP-B100 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
Available Quantity: | 9526 Pieces |
Unit Price: | Quote by Email |
Description: | LED Circuit Board Indicator Bar - Single, SIP Red 1.8V 20mA Rectangle with Flat Top, 19.05mm x 3.81mm Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HLCP-B100 Datasheet |
Internal Part Number | 898-HLCP-B100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Alternate Scrambler/Painter 12/Nov/2014 | |
Online Catalog | HLCP-X100 and HLMP-2XXX Series | |
Category | Optoelectronics | |
Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Color | Red | |
Wavelength - Peak | 645nm | |
Configuration | Bar - Single, SIP | |
Current | 20mA | |
Millicandela Rating | 15mcd | |
Viewing Angle | - | |
Lens Type | - | |
Lens Style/Size | Rectangle with Flat Top, 19.05mm x 3.81mm | |
Voltage Rating | 1.8V | |
Mounting Type | Through Hole | |
Standard Package | 160 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HLCP-B100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HLCP-B100 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HLCP-B100 is new and unused, you can buy HLCP-B100 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLCP-B100.
