Manufacturer Part Number: | HKQ0603U1N2S-T |
---|---|
Manufacturer: | Taiyo Yuden |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

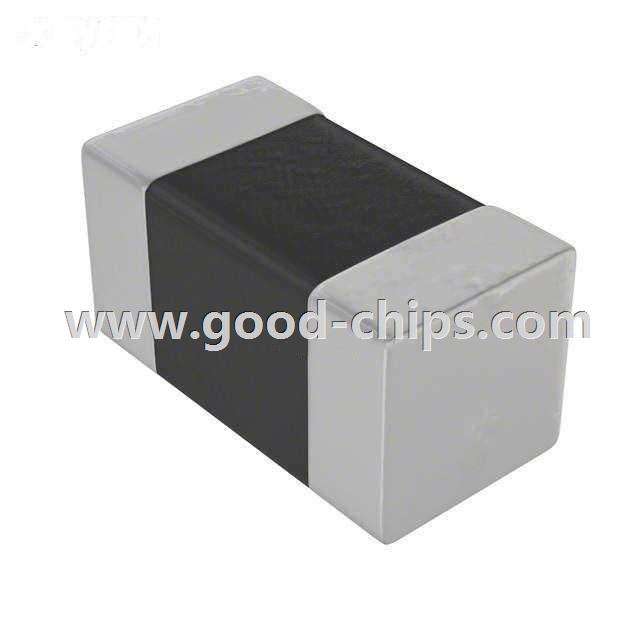

Description: | 1.2nH Unshielded Multilayer Inductor 800mA 80 mOhm Max 0201 (0603 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HKQ0603U1N2S-T Datasheet |
Internal Part Number | 898-HKQ0603U1N2S-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Taiyo Yuden | |
Series | HK | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | Ferrite | |
Inductance | 1.2nH | |
Tolerance | ±0.3nH | |
Current Rating | 800mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 80 mOhm Max | |
Q @ Freq | 14 @ 500MHz | |
Frequency - Self Resonant | 10GHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 500MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0201 (0603 Metric) | |
Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
Height - Seated (Max) | 0.013" (0.33mm) | |
Standard Package | 15,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HKQ0603U1N2S-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HKQ0603U1N2S-T is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of HKQ0603U1N2S-T is new and unused, you can buy HKQ0603U1N2S-T Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HKQ0603U1N2S-T.
