Manufacturer Part Number: | HK-R-SR2-1 |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9027 Pieces |
Unit Price: | Quote by Email |

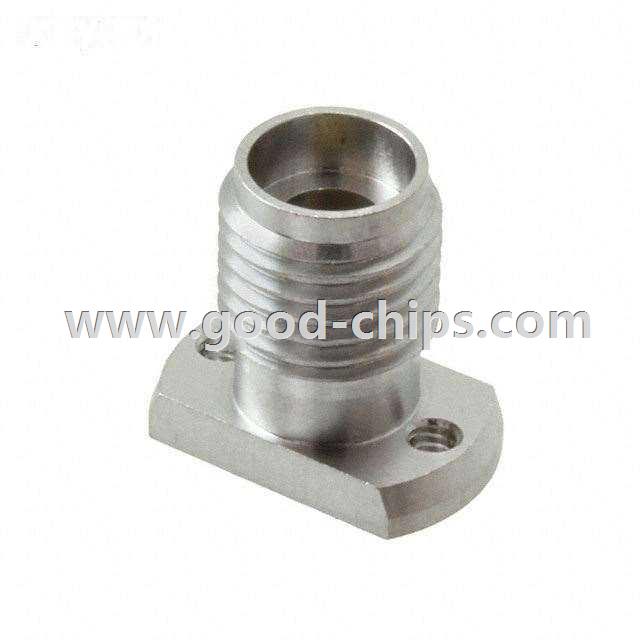

Description: | 2.92mm Connector Receptacle, Female Socket 50 Ohm Panel Mount, Flange (2 Hole) Compression |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HK-R-SR2-1 Datasheet |
Internal Part Number | 898-HK-R-SR2-1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | H2.4, HK PCB Design Guidelines | |
Online Catalog | HK Series | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Hirose Electric Co Ltd | |
Series | HK | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | 2.92mm | |
Connector Type | Receptacle, Female Socket | |
Contact Termination | Compression | |
Shield Termination | Screw | |
Impedance | 50 Ohm | |
Mounting Type | Panel Mount, Flange (2 Hole) | |
Cable Group | - | |
Fastening Type | Threaded | |
Frequency - Max | 40GHz | |
Features | Field Replaceable, For Hermetically Sealed Pin | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Stainless Steel | |
Body Finish | - | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | - | |
Operating Temperature | -55°C ~ 105°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HK-R-SR2-1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HK-R-SR2-1 is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HK-R-SR2-1 is new and unused, you can buy HK-R-SR2-1 Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HK-R-SR2-1.
