Manufacturer Part Number: | HI1-574ASD-2 |
---|---|
Manufacturer: | Intersil |
Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Bit Analog to Digital Converter 2 Input 1 SAR 28-CDIP SB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HI1-574ASD-2 Datasheet |
Internal Part Number | 898-HI1-574ASD-2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Analog to Digital Converters (ADC) | |
Manufacturer | Intersil | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Number of Bits | 12 | |
Sampling Rate (Per Second) | 40k | |
Number of Inputs | 2 | |
Input Type | Single Ended | |
Data Interface | Parallel | |
Configuration | ADC | |
Ratio - S/H:ADC | - | |
Number of A/D Converters | 1 | |
Architecture | SAR | |
Reference Type | External, Internal | |
Voltage - Supply, Analog | ±11.4 V ~ 16.5 V | |
Voltage - Supply, Digital | 5V | |
Features | Selectable Address | |
Operating Temperature | -55°C ~ 125°C | |

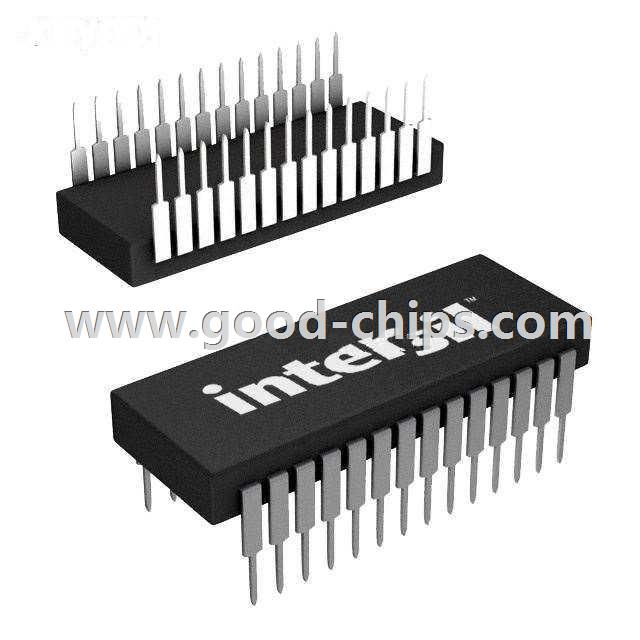

Package / Case | 28-CDIP (0.600", 15.24mm) | |
Supplier Device Package | 28-CDIP SB | |
Standard Package | 13 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HI1-574ASD-2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HI1-574ASD-2 is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of HI1-574ASD-2 is new and unused, you can buy HI1-574ASD-2 Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HI1-574ASD-2.
