| Manufacturer Part Number: | HI-8197PCTF |
|---|---|
| Manufacturer: | Holt Integrated Circuits Inc. |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Circuit IC Switch 1:1 31 Ohm 16-CSP (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HI-8197PCTF Datasheet |
| Internal Part Number | 898-HI-8197PCTF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Holt Integrated Circuits Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Switch Circuit | SPST - NO/NC | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 4 | |
| On-State Resistance (Max) | 31 Ohm | |
| Channel-to-Channel Matching (ΔRon) | - | |
| Voltage - Supply, Single (V+) | - | |
| Voltage - Supply, Dual (V±) | ±3 V ~ 10 V | |
| Switch Time (Ton, Toff) (Max) | 35ns, 20ns (Typ) | |
| -3db Bandwidth | - | |
| Charge Injection | -10pC | |
| Channel Capacitance (CS(off), CD(off)) | 12pF | |
| Current - Leakage (IS(off)) (Max) | 5nA | |
| Crosstalk | - | |
| Operating Temperature | -55°C ~ 125°C (TA) | |

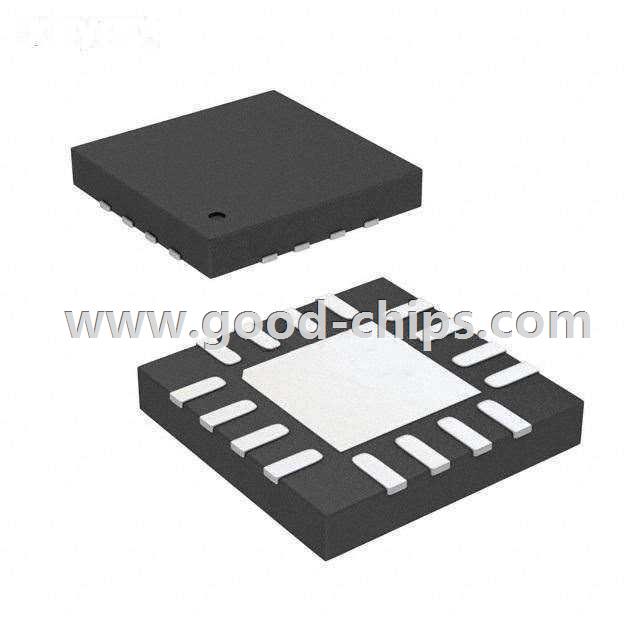

| Package / Case | 16-WQFN Exposed Pad, CSP | |
| Supplier Device Package | 16-CSP (5x5) | |
| Standard Package | 370 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HI-8197PCTF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HI-8197PCTF is in stock for immediate shipping now. We are the distributor of Holt Integrated Circuits Inc. all series components. The condition of HI-8197PCTF is new and unused, you can buy HI-8197PCTF Holt Integrated Circuits Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HI-8197PCTF.
