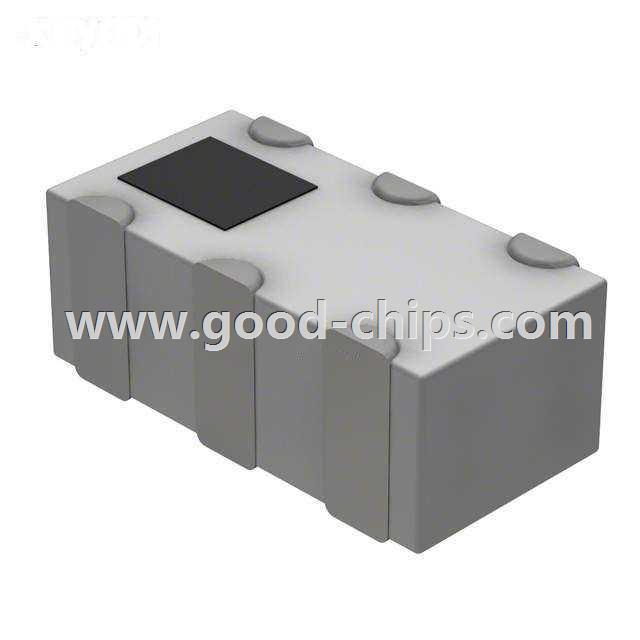

| Manufacturer Part Number: | HHM1710D1 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Balun |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Balun 2.4GHz ~ 2.5GHz 50 / 50 Ohm 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HHM1710D1 Datasheet |
| Internal Part Number | 898-HHM1710D1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF Products Overview | |
| Design Resources | IoT Product Selector | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | HHM Series | |
| Category | RF/IF and RFID | |
| Family | Balun | |
| Manufacturer | TDK Corporation | |
| Series | HHM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Range | 2.4GHz ~ 2.5GHz | |
| Impedance - Unbalanced/Balanced | 50 / 50 Ohm | |
| Phase Difference | 180° ±10 | |
| Insertion Loss (Max) | 1.2dB | |
| Return Loss (Min) | 10dB | |
| Package / Case | 0603 (1608 Metric) | |
| Mounting Type | Surface Mount | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HHM1710D1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HHM1710D1 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of HHM1710D1 is new and unused, you can buy HHM1710D1 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HHM1710D1.
