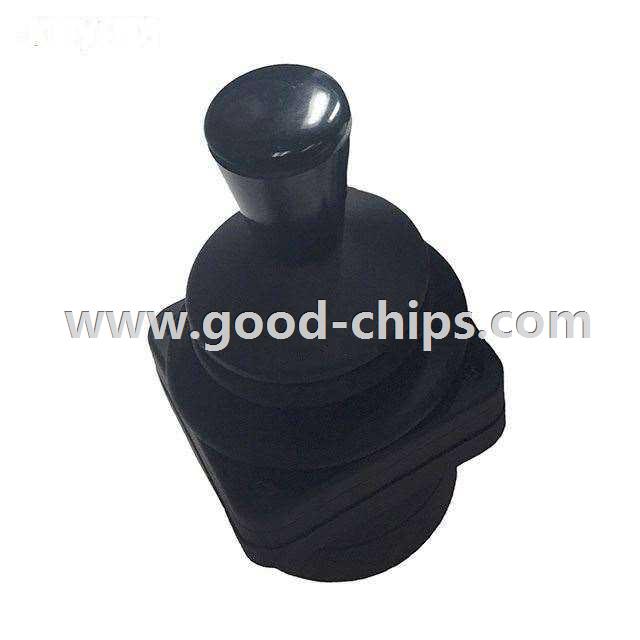

| Manufacturer Part Number: | HF3396 |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Joystick, 2 - Axis Digital (Hall Effect Over CANbus Interface) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HF3396 Datasheet |
| Internal Part Number | 898-HF3396 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | HF3396.stp | |
| Online Catalog | HF Series | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | Apem Inc. | |
| Series | HF | |
| Part Status | Active | |
| Type | Joystick, 2 - Axis | |
| Actuator Type | Joystick | |
| Switch Function | 360° Directional | |
| Functions, Extra | - | |
| Output | Digital (Hall Effect Over CANbus Interface) | |
| Voltage - Supply | 6 ~ 35VDC | |
| Current Rating | - | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | - | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Wire Leads with Connector | |
| Operating Temperature | -40°C ~ 85°C | |
| Panel Cutout Dimensions | Circular - 41.28mm Dia | |
| Ingress Protection | IP68 - Dust Tight, Waterproof | |
| Features | - | |
| Mechanical Life | 5,000,000 Cycles | |
| Electrical Life | - | |
| Operating Force | 280gf | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HF3396 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HF3396 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of HF3396 is new and unused, you can buy HF3396 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HF3396.
