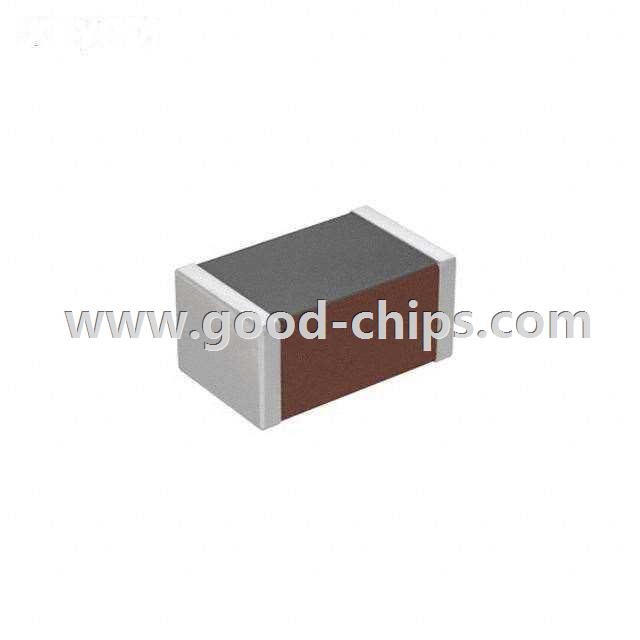

| Manufacturer Part Number: | HF30ACB201209-T |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 7 Ohm Impedance Ferrite Bead 0805 (2012 Metric) Surface Mount Signal Line 600mA 1 Lines 100 mOhm Max DCR -40°C ~ 125°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HF30ACB201209-T Datasheet |
| Internal Part Number | 898-HF30ACB201209-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | HF-ACB Series | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | TDK Corporation | |
| Series | HF-ACB | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 7 Ohm @ 100MHz | |
| Current Rating (Max) | 600mA | |
| DC Resistance (DCR) (Max) | 100 mOhm | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Package / Case | 0805 (2012 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.043" (1.10mm) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HF30ACB201209-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HF30ACB201209-T is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of HF30ACB201209-T is new and unused, you can buy HF30ACB201209-T TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HF30ACB201209-T.
