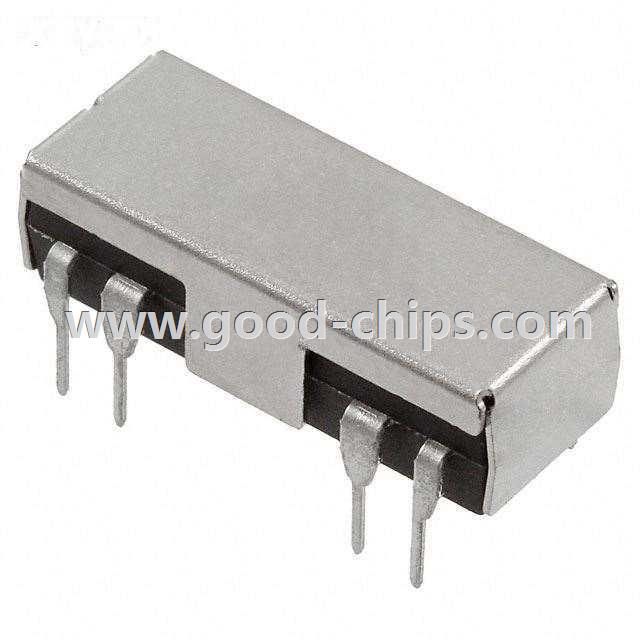

Manufacturer Part Number: | HE721A0540 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Signal Relays, Up to 2 Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Reed Relay SPST-NO (1 Form A) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HE721A0540 Datasheet |
Internal Part Number | 898-HE721A0540 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Handling of Reed Sensors, Relays, Switches Appl Note | |
RoHS Information | RoHS Compliance Survey | |
Category | Relays | |
Family | Signal Relays, Up to 2 Amps | |
Manufacturer | Littelfuse Inc. | |
Series | HE700 | |
Packaging | Tube | |
Part Status | Active | |
Relay Type | Reed | |
Coil Type | Non Latching | |
Coil Current | 10mA | |
Coil Voltage | 5VDC | |
Contact Form | SPST-NO (1 Form A) | |
Contact Rating (Current) | 500mA | |
Switching Voltage | 200VDC - Max | |
Turn On Voltage (Max) | 3.75 VDC | |
Turn Off Voltage (Min) | 0.5 VDC | |
Operate Time | 1ms | |
Release Time | 1ms | |
Features | Magnetic Shield | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Contact Material | - | |
Coil Power | - | |
Coil Resistance | 500 Ohms | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 480 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HE721A0540 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HE721A0540 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of HE721A0540 is new and unused, you can buy HE721A0540 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HE721A0540.
