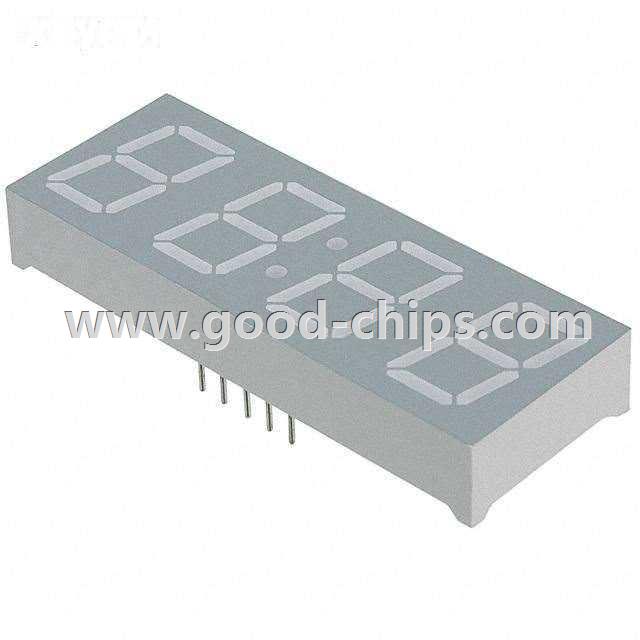

| Manufacturer Part Number: | HDSP-B03E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 10173 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment Clock 4 Character Common Cathode 2.05V 20mA 0.752" H x 2.016" W x 0.315" D (19.10mm x 51.20mm x 8.00mm) 12-DIP (0.600", 15.24mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDSP-B03E Datasheet |
| Internal Part Number | 898-HDSP-B03E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 7-Segment Quad Digit Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Characters | 4 | |
| Size / Dimension | 0.752" H x 2.016" W x 0.315" D (19.10mm x 51.20mm x 8.00mm) | |
| Digit/Alpha Size | 0.56" (14.22mm) | |
| Display Type | 7-Segment Clock | |
| Common Pin | Common Cathode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 2.05V | |
| Current - Test | 20mA | |
| Millicandela Rating | 5.5mcd | |
| Wavelength - Peak | 632nm | |
| Power Dissipation (Max) | 65mW | |
| Package / Case | 12-DIP (0.600", 15.24mm) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDSP-B03E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDSP-B03E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSP-B03E is new and unused, you can buy HDSP-B03E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSP-B03E.
