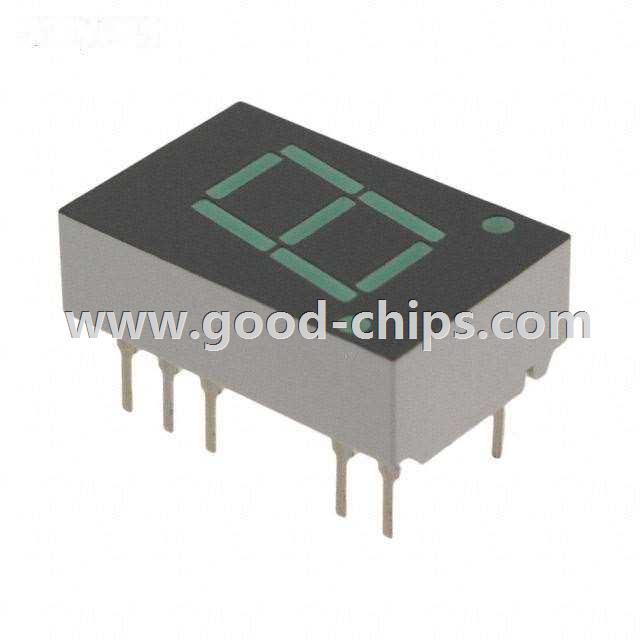

| Manufacturer Part Number: | HDSP-4603 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Green 7-Segment 1 Character Common Cathode 2.1V 10mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 10 Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDSP-4603 Datasheet |
| Internal Part Number | 898-HDSP-4603 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Alternate Scrambler/Painter 12/Nov/2014 | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | |
| Digit/Alpha Size | 0.43" (11.00mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Green | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 10mA | |
| Millicandela Rating | 4mcd | |
| Wavelength - Peak | 566nm | |
| Power Dissipation (Max) | 105mW | |
| Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDSP-4603 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDSP-4603 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSP-4603 is new and unused, you can buy HDSP-4603 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSP-4603.
