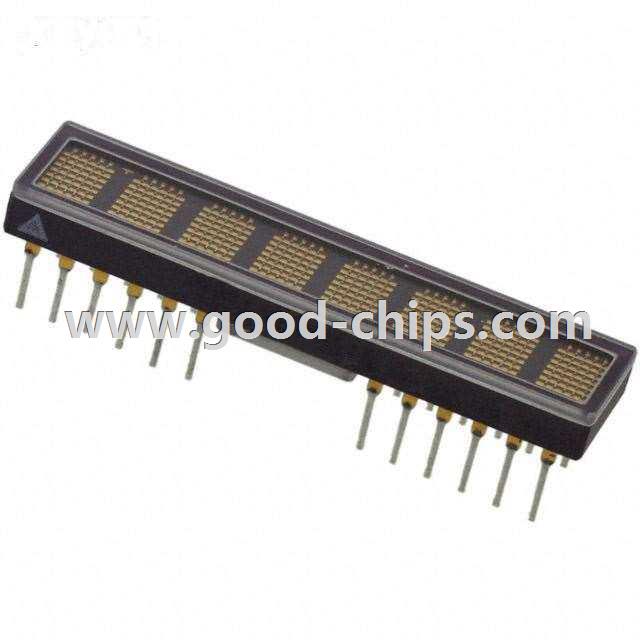

Manufacturer Part Number: | HDSP-2131 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Display Modules - LED Dot Matrix and Cluster |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Dot Matrix Display Module 5 x 7 Yellow Parallel, 8-Bit 1.68" L x 0.39" W x 0.25" H (42.72mm x 9.91mm x 6.35mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HDSP-2131 Datasheet |
Internal Part Number | 898-HDSP-2131 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | HDSP-213x Series | |
Category | Optoelectronics | |
Family | Display Modules - LED Dot Matrix and Cluster | |
Manufacturer | Broadcom Limited | |
Series | HDSP-213x | |
Part Status | Active | |
Millicandela Rating | 2.50mcd ~ 20.28mcd | |
Internal Connection | - | |
Size / Dimension | 1.68" L x 0.39" W x 0.25" H (42.72mm x 9.91mm x 6.35mm) | |
Color | Yellow | |
Configuration | 5 x 7 | |
Voltage - Forward (Vf) (Typ) | - | |
Interface | Parallel, 8-Bit | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HDSP-2131 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HDSP-2131 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSP-2131 is new and unused, you can buy HDSP-2131 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSP-2131.
