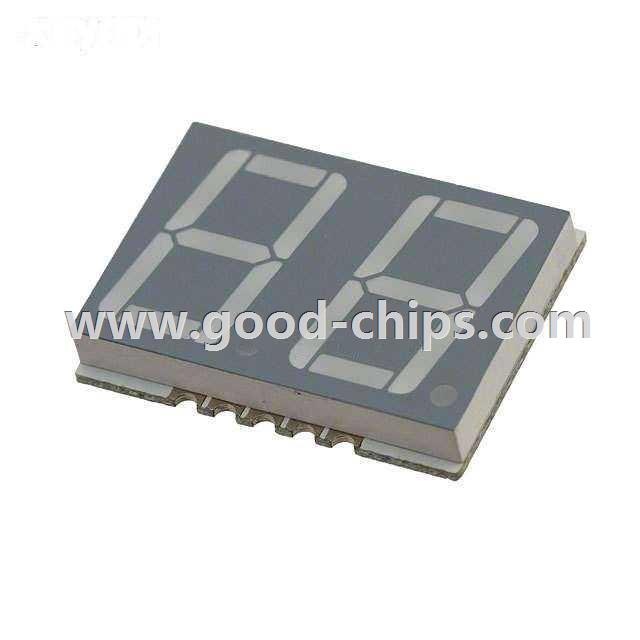

| Manufacturer Part Number: | HDSM-541C |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment 2 Character Common Anode 2V 20mA 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) 10-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDSM-541C Datasheet |
| Internal Part Number | 898-HDSM-541C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Design/Pkging 12/Feb/2010 | |
| Online Catalog | 7-Segment Surface Mount Dual Digit Displays | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) | |
| Digit/Alpha Size | 0.56" (14.22mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 2V | |
| Current - Test | 20mA | |
| Millicandela Rating | 16mcd | |
| Wavelength - Peak | 632nm | |
| Power Dissipation (Max) | 65mW | |
| Package / Case | 10-SMD | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDSM-541C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDSM-541C is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSM-541C is new and unused, you can buy HDSM-541C Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSM-541C.
