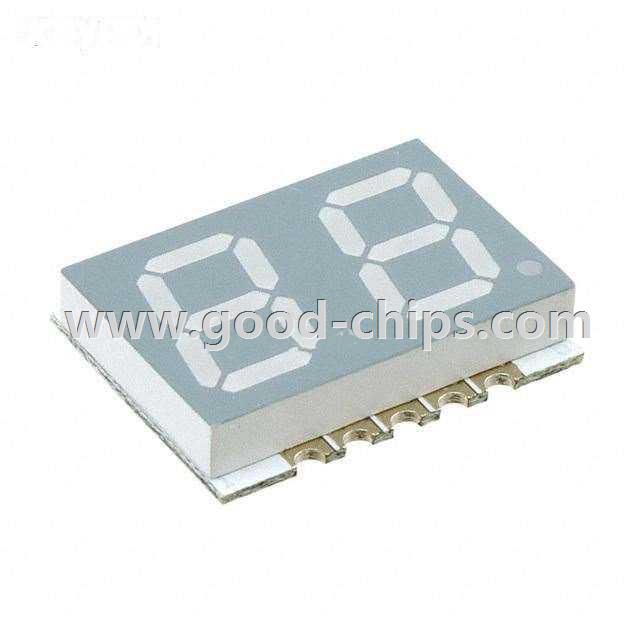

Manufacturer Part Number: | HDSM-441W |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Display Modules - LED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Character LED Display Module White 7-Segment 2 Character Common Anode 2.95V 5mA 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm) 10-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HDSM-441W Datasheet |
Internal Part Number | 898-HDSM-441W | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | New Replacement Dice 12/May/2014 | |
Online Catalog | 7-Segment Surface Mount Dual Digit Displays | |
Category | Optoelectronics | |
Family | Display Modules - LED Character and Numeric | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Characters | 2 | |
Size / Dimension | 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm) | |
Digit/Alpha Size | 0.39" (10.00mm) | |
Display Type | 7-Segment | |
Common Pin | Common Anode | |
Color | White | |
Voltage - Forward (Vf) (Typ) | 2.95V | |
Current - Test | 5mA | |
Millicandela Rating | 40mcd | |
Wavelength - Peak | - | |
Power Dissipation (Max) | 39mW | |
Package / Case | 10-SMD | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HDSM-441W | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HDSM-441W is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSM-441W is new and unused, you can buy HDSM-441W Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSM-441W.
