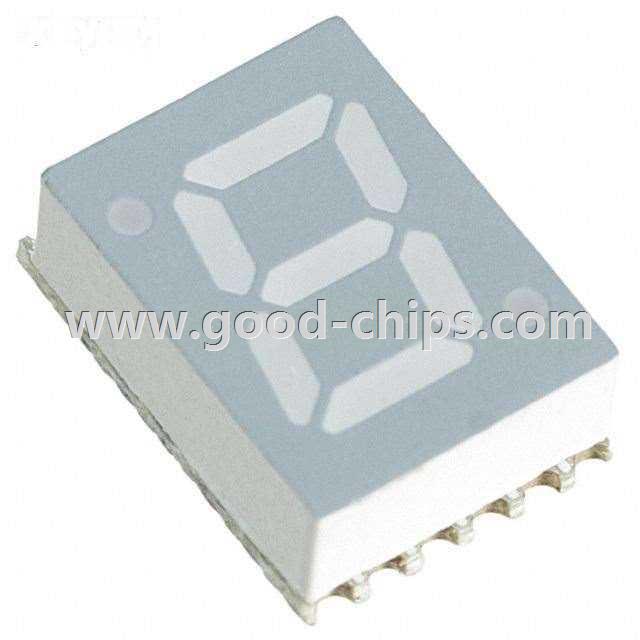

| Manufacturer Part Number: | HDSM-281B |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Blue 7-Segment 1 Character Common Anode 3.3V 20mA 0.394" H x 0.295" W x 0.124" D (10.00mm x 7.50mm x 3.15mm) 12-SMD (No Lead) 11 Pads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDSM-281B Datasheet |
| Internal Part Number | 898-HDSM-281B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 7-Segment Surface Mount Single Digit Displays | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.394" H x 0.295" W x 0.124" D (10.00mm x 7.50mm x 3.15mm) | |
| Digit/Alpha Size | 0.28" (7.00mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Blue | |
| Voltage - Forward (Vf) (Typ) | 3.3V | |
| Current - Test | 20mA | |
| Millicandela Rating | 6mcd | |
| Wavelength - Peak | 462nm | |
| Power Dissipation (Max) | 100mW | |
| Package / Case | 12-SMD (No Lead) 11 Pads | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDSM-281B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDSM-281B is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSM-281B is new and unused, you can buy HDSM-281B Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSM-281B.
