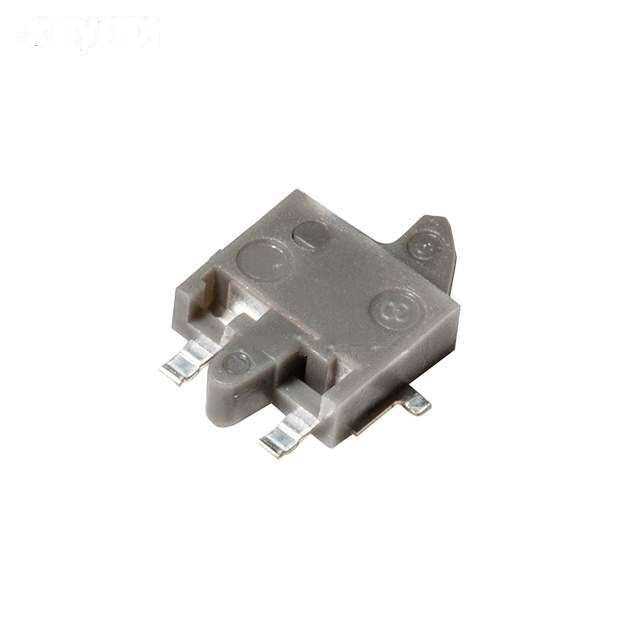

| Manufacturer Part Number: | HDP001L |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 11510 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH DETECTOR SPST-NO 1MA 5V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDP001L Datasheet |
| Internal Part Number | 898-HDP001L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | HDP Series Micro Mini, Side-Actuated SMD Detect Switches | |
| 3D Model | HDP001L.stp | |
| Online Catalog | HDP Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | HDP | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 5V | |
| Actuator Type | Angled Toggle (Detector) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Ingress Protection | - | |
| Features | Board Guide | |
| Operating Force, Torque | - | |
| Release Force | - | |
| Pretravel | 0.006" (0.15mm) | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | 0.117" (2.96mm) | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDP001L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDP001L is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of HDP001L is new and unused, you can buy HDP001L C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDP001L.
