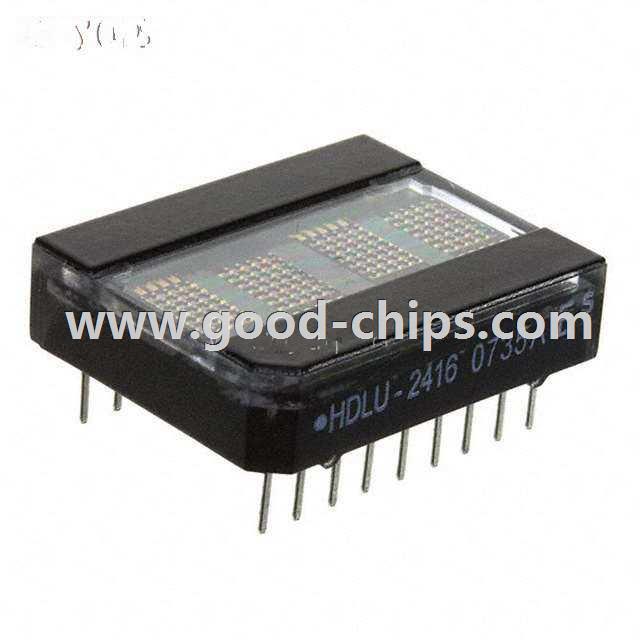

| Manufacturer Part Number: | HDLU-2416 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Dot Matrix and Cluster |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dot Matrix Display Module 5 x 7 Red 7-Bit ASCII 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDLU-2416 Datasheet |
| Internal Part Number | 898-HDLU-2416 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Dot Matrix and Cluster | |
| Manufacturer | Broadcom Limited | |
| Series | HDLx-2416 | |
| Part Status | Active | |
| Millicandela Rating | 1.20mcd ~ 13.30mcd | |
| Internal Connection | - | |
| Size / Dimension | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | |
| Color | Red | |
| Configuration | 5 x 7 | |
| Voltage - Forward (Vf) (Typ) | - | |
| Interface | 7-Bit ASCII | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDLU-2416 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDLU-2416 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDLU-2416 is new and unused, you can buy HDLU-2416 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDLU-2416.
