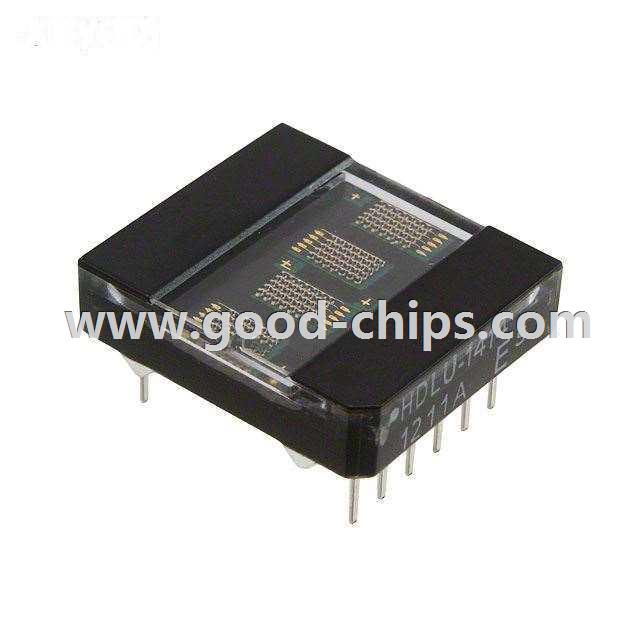

Manufacturer Part Number: | HDLU-1414 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Display Modules - LED Dot Matrix and Cluster |
Available Quantity: | 9060 Pieces |
Unit Price: | Quote by Email |
Description: | Dot Matrix Display Module 5 x 7 Red 7-Bit ASCII 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HDLU-1414 Datasheet |
Internal Part Number | 898-HDLU-1414 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | HDLx-1414 Series | |
Category | Optoelectronics | |
Family | Display Modules - LED Dot Matrix and Cluster | |
Manufacturer | Broadcom Limited | |
Series | HDLx-1414 | |
Part Status | Active | |
Millicandela Rating | 1.20mcd ~ 13.30mcd | |
Internal Connection | - | |
Size / Dimension | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | |
Color | Red | |
Configuration | 5 x 7 | |
Voltage - Forward (Vf) (Typ) | - | |
Interface | 7-Bit ASCII | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HDLU-1414 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HDLU-1414 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDLU-1414 is new and unused, you can buy HDLU-1414 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDLU-1414.
