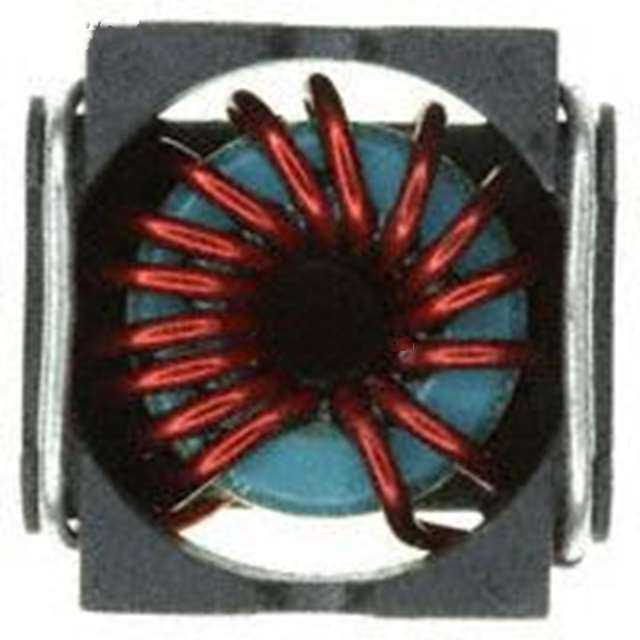

| Manufacturer Part Number: | HCTR-444 |
|---|---|
| Manufacturer: | API Delevan Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 9µH Shielded Toroidal Inductor 6.28A 11.4 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HCTR-444 Datasheet |
| Internal Part Number | 898-HCTR-444 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HCTR Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | API Delevan Inc. | |
| Series | HCTR | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Toroidal | |
| Material - Core | Powdered Iron | |
| Inductance | 9µH | |
| Tolerance | ±25% | |
| Current Rating | 6.28A | |
| Current - Saturation | - | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 11.4 mOhm Max | |
| Q @ Freq | 26 @ 100kHz | |
| Frequency - Self Resonant | 55MHz | |
| Ratings | - | |
| Operating Temperature | -30°C ~ 130°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.665" L x 0.665" W (16.89mm x 16.89mm) | |
| Height - Seated (Max) | 0.400" (10.16mm) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HCTR-444 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HCTR-444 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of HCTR-444 is new and unused, you can buy HCTR-444 API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HCTR-444.
