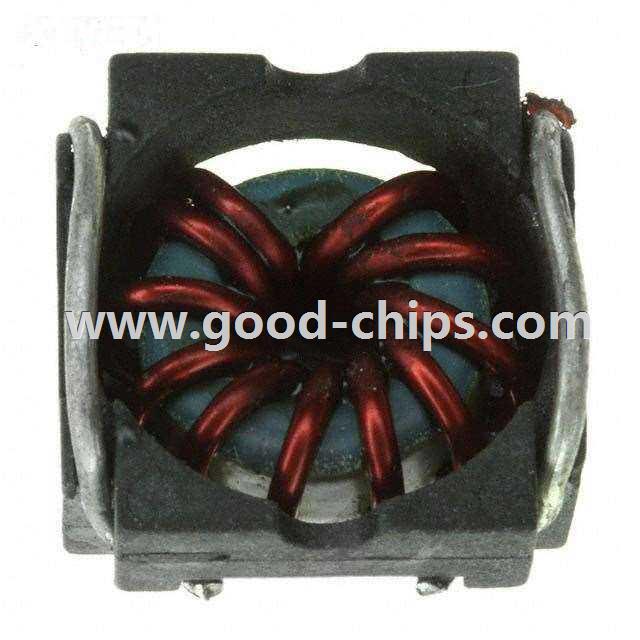

Manufacturer Part Number: | HCTR-442 |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4.2µH Shielded Toroidal Inductor 12.8A 5.4 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HCTR-442 Datasheet |
Internal Part Number | 898-HCTR-442 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | HCTR | |
Packaging | Bulk | |
Part Status | Active | |
Type | Toroidal | |
Material - Core | Powdered Iron | |
Inductance | 4.2µH | |
Tolerance | ±25% | |
Current Rating | 12.8A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 5.4 mOhm Max | |
Q @ Freq | 29 @ 100kHz | |
Frequency - Self Resonant | 85MHz | |
Ratings | - | |
Operating Temperature | -30°C ~ 130°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.665" L x 0.665" W (16.89mm x 16.89mm) | |
Height - Seated (Max) | 0.400" (10.16mm) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HCTR-442 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HCTR-442 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of HCTR-442 is new and unused, you can buy HCTR-442 API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HCTR-442.
