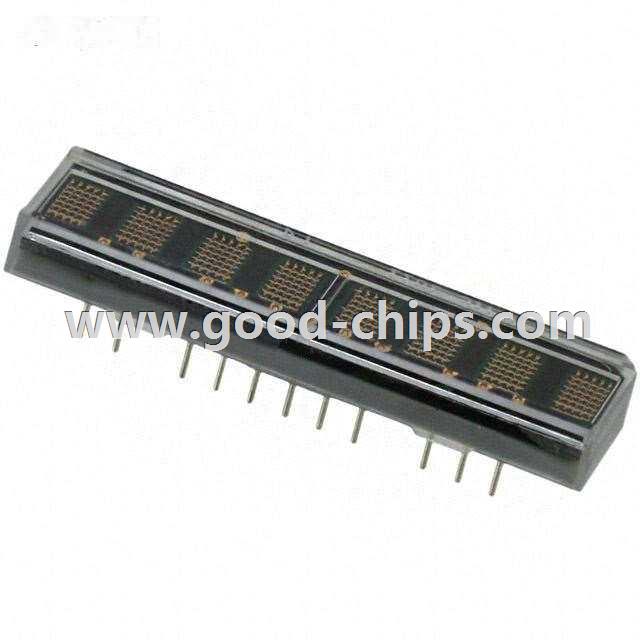

| Manufacturer Part Number: | HCMS-3977 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Dot Matrix and Cluster |
| Available Quantity: | 9293 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dot Matrix Display Module 5 x 7 Green Serial 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HCMS-3977 Datasheet |
| Internal Part Number | 898-HCMS-3977 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | HCMS-39xx LED Die 19/Dec/2011 HCMSY, HDSP-25Y, QDSP-2536 Update 08/Sep/2014 | |
| Online Catalog | HCMS-39xx Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Dot Matrix and Cluster | |
| Manufacturer | Broadcom Limited | |
| Series | HCMS-39xx | |
| Part Status | Active | |
| Millicandela Rating | 1mcd | |
| Internal Connection | - | |
| Size / Dimension | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | |
| Color | Green | |
| Configuration | 5 x 7 | |
| Voltage - Forward (Vf) (Typ) | - | |
| Interface | Serial | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HCMS-3977 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HCMS-3977 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HCMS-3977 is new and unused, you can buy HCMS-3977 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HCMS-3977.
