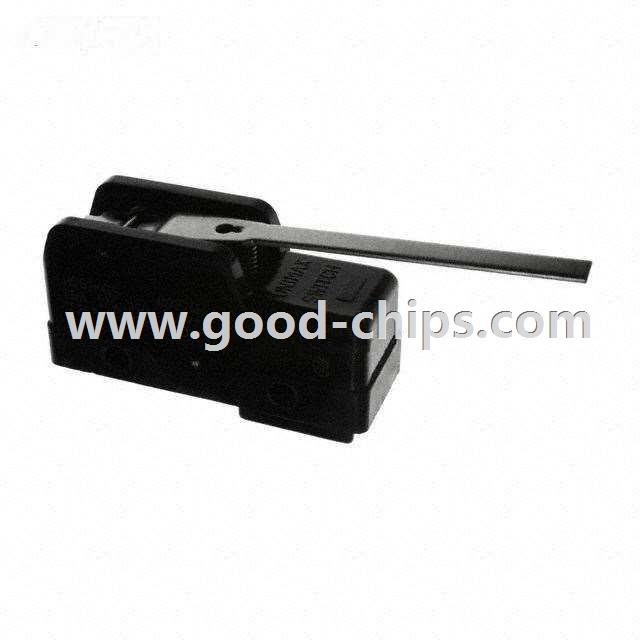

| Manufacturer Part Number: | HBS2KGB4STS11C |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9111 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 20A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HBS2KGB4STS11C Datasheet |
| Internal Part Number | 898-HBS2KGB4STS11C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches | |
| Online Catalog | HB Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | HB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 20A (AC), 500mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Features | - | |
| Operating Force, Torque | 71gf | |
| Release Force | 14gf | |
| Pretravel | 0.380" (9.65mm) | |
| Differential Travel | 0.080" (2.0mm) | |
| Overtravel | 0.190" (4.8mm) | |
| Operating Position | 0.720" (18.3mm) | |
| Mechanical Life | - | |
| Electrical Life | 150,000 Cycles | |
| Operating Temperature | -55°C ~ 150°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HBS2KGB4STS11C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HBS2KGB4STS11C is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of HBS2KGB4STS11C is new and unused, you can buy HBS2KGB4STS11C C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HBS2KGB4STS11C.
