Manufacturer Part Number: | HBC1505A |
---|---|
Manufacturer: | Winchester Electronics |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

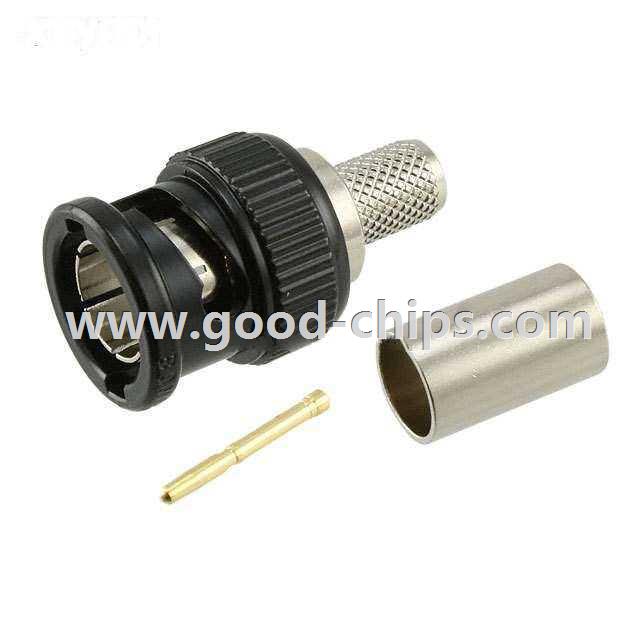

Description: | BNC, HD Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HBC1505A Datasheet |
Internal Part Number | 898-HBC1505A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Shadow™ HBC Series High Definition 75ohm Connectors | |
Featured Product | Bomar Interconnect Products - The Shadow HD BNC Connectors | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Winchester Electronics | |
Series | Shadow™ | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | BNC, HD | |
Connector Type | Plug, Male Pin | |
Contact Termination | Crimp | |
Shield Termination | Crimp | |
Impedance | 75 Ohm | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | Belden 1505A | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 1GHz | |
Features | - | |
Housing Color | Black | |
Ingress Protection | Weatherproof | |
Body Material | Brass | |
Body Finish | Black Nickel | |
Center Contact Material | Brass | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | 500V | |
Operating Temperature | -55°C ~ 200°C | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HBC1505A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HBC1505A is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of HBC1505A is new and unused, you can buy HBC1505A Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HBC1505A.
