| Manufacturer Part Number: | HA7-2520-2 |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Amplifier 1 Circuit 8-CERDIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HA7-2520-2 Datasheet |
| Internal Part Number | 898-HA7-2520-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 120 V/µs | |
| Gain Bandwidth Product | 20MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 100nA | |
| Voltage - Input Offset | 4mV | |
| Current - Supply | 4mA | |
| Current - Output / Channel | 20mA | |
| Voltage - Supply, Single/Dual (±) | 8 V ~ 36 V, ±4 V ~ 18 V | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Through Hole | |

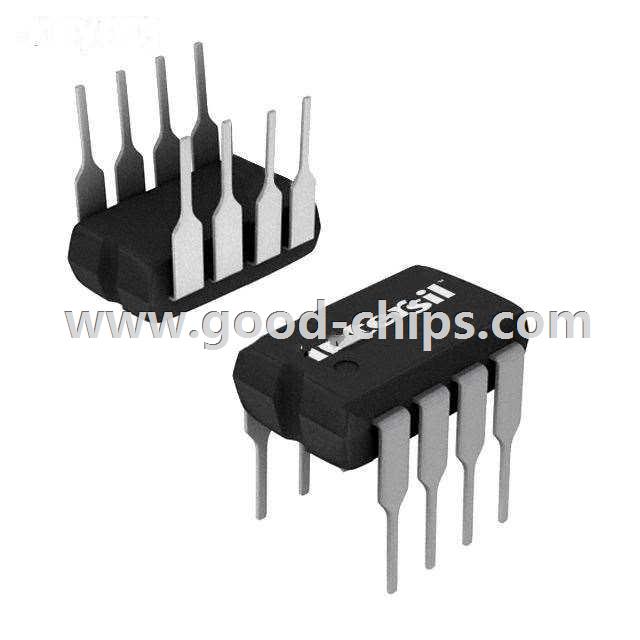

| Package / Case | 8-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-CERDIP | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HA7-2520-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HA7-2520-2 is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of HA7-2520-2 is new and unused, you can buy HA7-2520-2 Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HA7-2520-2.
