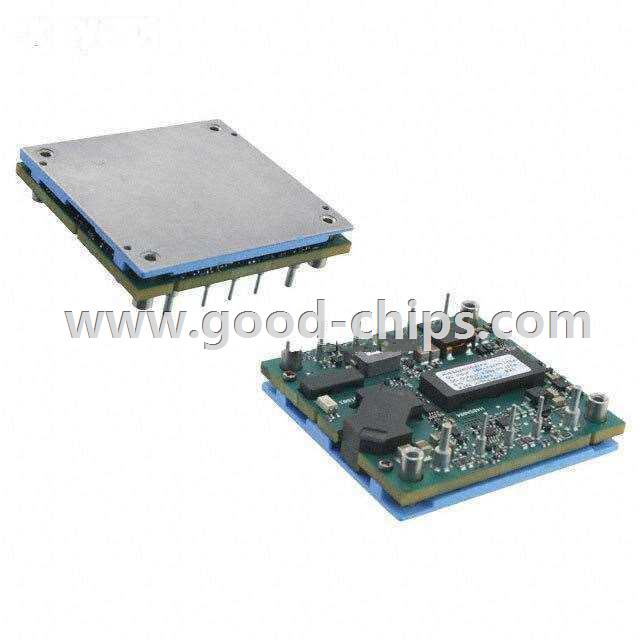

| Manufacturer Part Number: | H48SA28016NYFH |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9027 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE DC/DC 1/2 BRICK 28V 16A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H48SA28016NYFH Datasheet |
| Internal Part Number | 898-H48SA28016NYFH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Isolated DC/DC Converters Isolated DC/DC Converter Design Considerations | |
| Featured Product | DC/DC Converters – Delta Product Groups Isolated Open-Frame DC/DC Converters | |
| Online Catalog | Delphi H48SA Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi H48SA | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 28V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 16A | |
| Power (Watts) - Manufacture Series | 450W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 9-DIP Module, 1/2 Brick | |
| Size / Dimension | 2.28" L x 2.40" W x 0.50" H (57.8mm x 61.0mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 98°C | |
| Efficiency | 92.7% | |
| Power (Watts) - Max | 448W | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H48SA28016NYFH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H48SA28016NYFH is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of H48SA28016NYFH is new and unused, you can buy H48SA28016NYFH Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H48SA28016NYFH.
