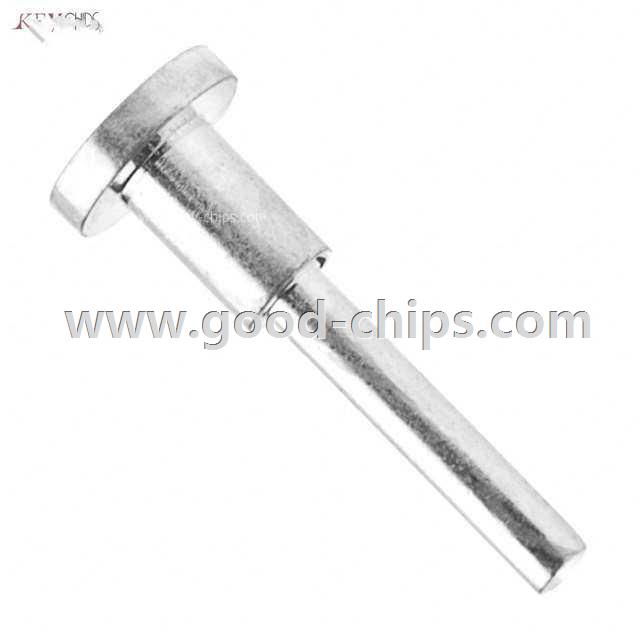

| Manufacturer Part Number: | H2105B01 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Available Quantity: | 14932 Pieces |
| Unit Price: | Quote by Email |
| Description: | PC Pin Terminal Connector Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H2105B01 Datasheet |
| Internal Part Number | 898-H2105B01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Spacers, Terminals, and PCB Sockets | |
| Online Catalog | PC Pins - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin, Single Post Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | PC Pin | |
| Terminal Style | Single End | |
| Pin Size - Above Flange | - | |
| Pin Size - Below Flange | 0.032" (0.81mm) Dia | |
| Length Above Flange | - | |
| Length Below Flange | 0.253" (6.43mm) | |
| Length - Overall | 0.273" (6.93mm) | |
| Flange Diameter | 0.094" (2.39mm) | |
| Mounting Hole Diameter | 0.052" ~ 0.056" (1.32mm ~ 1.42mm) | |
| Mounting Type | Through Hole | |
| Termination | Swage | |
| Insulation | Non-Insulated | |
| Board Thickness | 0.063" (1.60mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H2105B01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H2105B01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H2105B01 is new and unused, you can buy H2105B01 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H2105B01.
