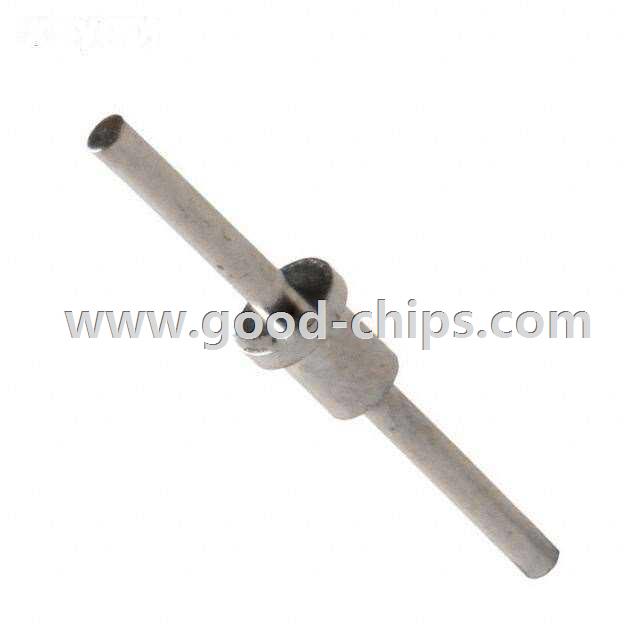

| Manufacturer Part Number: | H2101-01 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Available Quantity: | 10682 Pieces |
| Unit Price: | Quote by Email |
| Description: | PC Pin Terminal Connector Through Hole Tin 0.036" (0.91mm) Dia |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H2101-01 Datasheet |
| Internal Part Number | 898-H2101-01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Spacers, Terminals, and PCB Sockets | |
| Online Catalog | PC Pins - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin, Single Post Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | PC Pin | |
| Terminal Style | Double End | |
| Pin Size - Above Flange | 0.036" (0.91mm) Dia | |
| Pin Size - Below Flange | 0.036" (0.91mm) Dia | |
| Length Above Flange | 0.219" (5.56mm) | |
| Length Below Flange | 0.324" (8.23mm) | |
| Length - Overall | 0.563" (14.30mm) | |
| Flange Diameter | 0.094" (2.39mm) | |
| Mounting Hole Diameter | 0.070" ~ 0.074" (1.78mm ~ 1.87mm) | |
| Mounting Type | Through Hole | |
| Termination | Swage | |
| Insulation | Non-Insulated | |
| Board Thickness | 0.063" (1.60mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H2101-01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H2101-01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H2101-01 is new and unused, you can buy H2101-01 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H2101-01.
