H2082-01

H2082-01

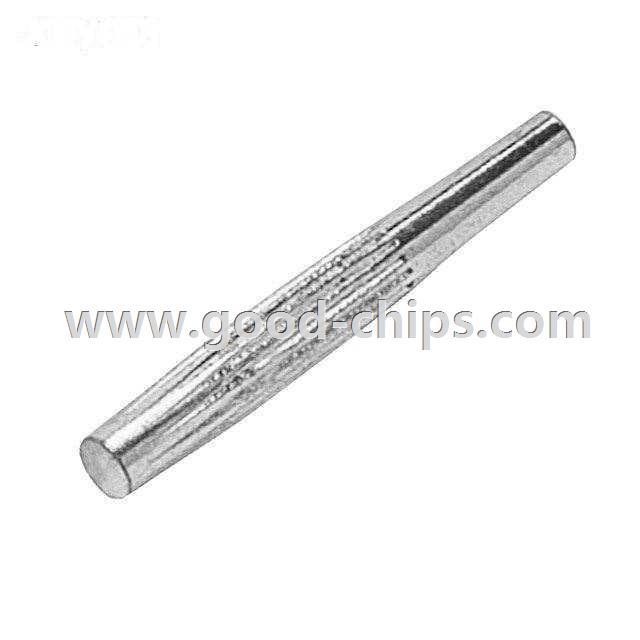

Manufacturer Part Number:H2082-01
Manufacturer:
Product Category:Terminals - PC Pin, Single Post Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:PC Pin Terminal Connector Through Hole Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: H2082-01 Datasheet
H2082-01´s Parameters
Internal Part Number898-H2082-01
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyTerminals - PC Pin, Single Post Connectors
ManufacturerHarwin Inc.
Series-
PackagingBulk
Part StatusActive
Terminal TypePC Pin
Terminal StyleSingle End
Pin Size - Above Flange-
Pin Size - Below Flange-
Length Above Flange-
Length Below Flange-
Length - Overall0.500" (12.70mm)
Flange Diameter-
Mounting Hole Diameter0.061" ~ 0.063" (1.55mm ~ 1.60mm)
Mounting TypeThrough Hole
TerminationStaking Flare
InsulationNon-Insulated
Board Thickness0.126" (3.20mm)
Contact MaterialBrass
Contact FinishTin
Contact Finish Thickness-
Material - Insulation-
Insulation Color-
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartH2082-01
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

H2082-01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H2082-01 is new and unused, you can buy H2082-01 Harwin Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for H2082-01.
