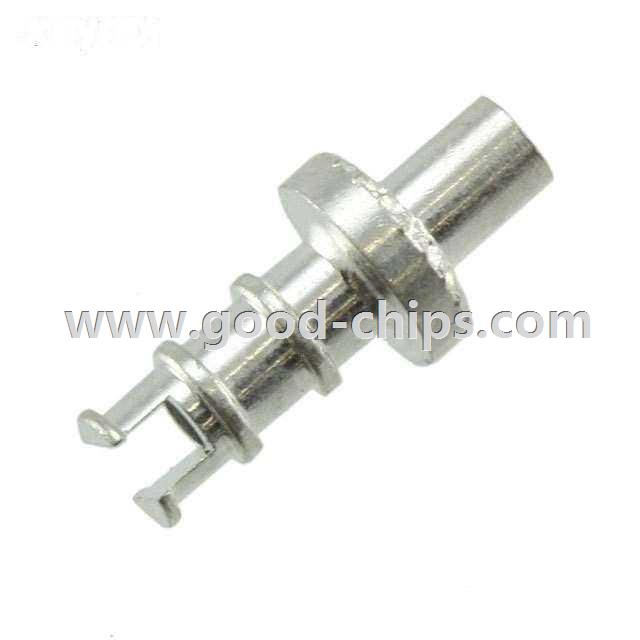

| Manufacturer Part Number: | H2072Z01 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 13099 Pieces |
| Unit Price: | Quote by Email |
| Description: | Terminal Turret Connector Single End, Fork 0.257" (6.52mm) Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H2072Z01 Datasheet |
| Internal Part Number | 898-H2072Z01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Spacers, Terminals, and PCB Sockets | |
| Online Catalog | Turret Terminals - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Single End, Fork | |
| Number of Turrets | Triple | |
| Length - Above Board | 0.257" (6.52mm) | |
| Length - Below Flange | 0.094" (2.39mm) | |
| Length - Overall | 0.351" (8.91mm) | |
| Mounting Type | Through Hole | |
| Termination | Swage | |
| Flange Diameter | 0.156" (3.96mm) | |
| Diameter - Turret Head | 0.100" (2.54mm) | |
| Staking Side OD | 0.074" ~ 0.079" (1.87mm ~ 2.01mm) | |
| Staking Side ID | 0.046" ~ 0.049" (1.17mm ~ 1.24mm) | |
| Mounting Hole Diameter | 0.079" ~ 0.083" (2.01mm ~ 2.11mm) | |
| Board Thickness | 0.063" (1.60mm) | |
| Contact Material | Brass Alloy | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H2072Z01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H2072Z01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H2072Z01 is new and unused, you can buy H2072Z01 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H2072Z01.
