| Manufacturer Part Number: | H2072-01 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 9666 Pieces |
| Unit Price: | Quote by Email |

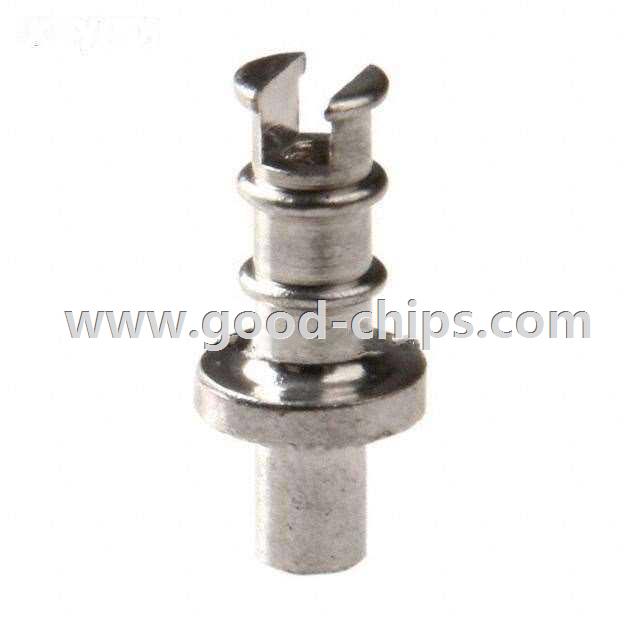

| Description: | Terminal Turret Connector Single End, Fork 0.250" (6.35mm) Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H2072-01 Datasheet |
| Internal Part Number | 898-H2072-01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Spacers, Terminals, and PCB Sockets | |
| Online Catalog | Turret Terminals - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Single End, Fork | |
| Number of Turrets | Triple | |
| Length - Above Board | 0.250" (6.35mm) | |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | |
| Length - Overall | 0.344" (8.74mm) | |
| Mounting Type | Through Hole | |
| Termination | Swage | |
| Flange Diameter | 0.156" (3.96mm) | |
| Diameter - Turret Head | 0.128" (3.25mm) | |
| Staking Side OD | 0.080" ~ 0.085" (2.03mm ~ 2.16mm) | |
| Staking Side ID | 0.055" ~ 0.060" (1.40mm ~ 1.53mm) | |
| Mounting Hole Diameter | 0.085" ~ 0.089" (2.17mm ~ 2.26mm) | |
| Board Thickness | 0.063" (1.60mm) | |
| Contact Material | Brass Alloy | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H2072-01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H2072-01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H2072-01 is new and unused, you can buy H2072-01 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H2072-01.
