| Manufacturer Part Number: | H16WD6025G |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9039 Pieces |
| Unit Price: | Quote by Email |

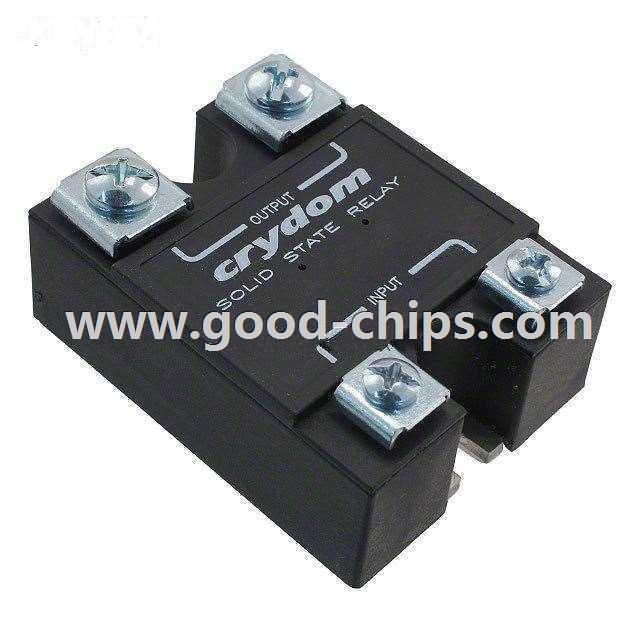

| Description: | Solid State Relay SPST-NO (1 Form A) Hockey Puck |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H16WD6025G Datasheet |
| Internal Part Number | 898-H16WD6025G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Solid State Relays | |
| Featured Product | Redesigned 4th Generation SSR’s | |
| 3D Model | H16WD.stp H16WD.sat H16WD.dwg | |
| Online Catalog | H16WD Series | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | H16WD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | AC, Zero Cross | |
| On-State Resistance (Max) | - | |
| Load Current | 25A | |
| Voltage - Input | 4 ~ 32VDC | |
| Voltage - Load | 48 ~ 660 V | |
| Mounting Type | Chassis Mount or Panel Mount | |
| Termination Style | Screw Terminal | |
| Package / Case | Hockey Puck | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H16WD6025G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H16WD6025G is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of H16WD6025G is new and unused, you can buy H16WD6025G Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H16WD6025G.
