Manufacturer Part Number: | H12D4840D |
---|---|
Manufacturer: | Crydom Co. |
Product Category: | Solid State Relays |
Available Quantity: | 9053 Pieces |
Unit Price: | Quote by Email |

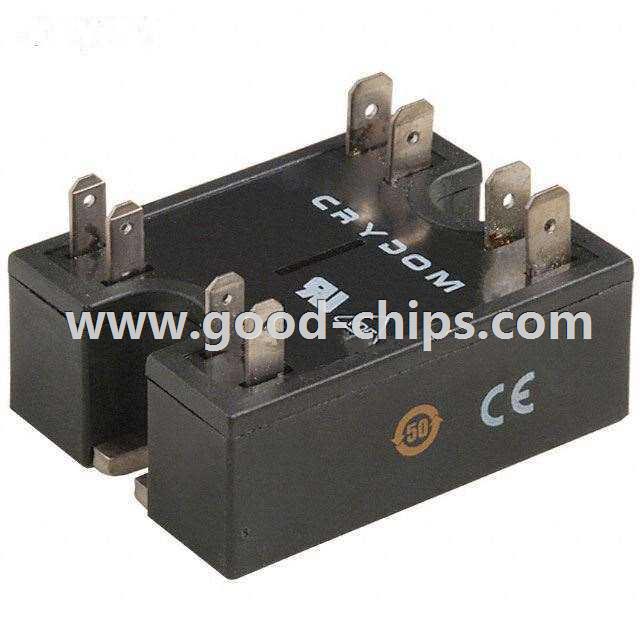

Description: | Solid State Relay DPST (2 Form A) Hockey Puck |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | H12D4840D Datasheet |
Internal Part Number | 898-H12D4840D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Declaration of Conformity | |
Featured Product | Redesigned 4th Generation SSR’s | |
3D Model | Dual Series, 480V.sat Dual Series, 480V.dwg Dual Series, 480V.stp | |
Online Catalog | H12D Series | |
Category | Relays | |
Family | Solid State Relays | |
Manufacturer | Crydom Co. | |
Series | H12D | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | DPST (2 Form A) | |
Output Type | AC, Zero Cross | |
On-State Resistance (Max) | - | |
Load Current | 40A | |
Voltage - Input | 4 ~ 15VDC | |
Voltage - Load | 48 ~ 530 V | |
Mounting Type | Chassis Mount or Panel Mount | |
Termination Style | Quick Connect - 0.250" (6.3mm) | |
Package / Case | Hockey Puck | |
Supplier Device Package | - | |
Relay Type | Relay | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | H12D4840D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
H12D4840D is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of H12D4840D is new and unused, you can buy H12D4840D Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H12D4840D.
