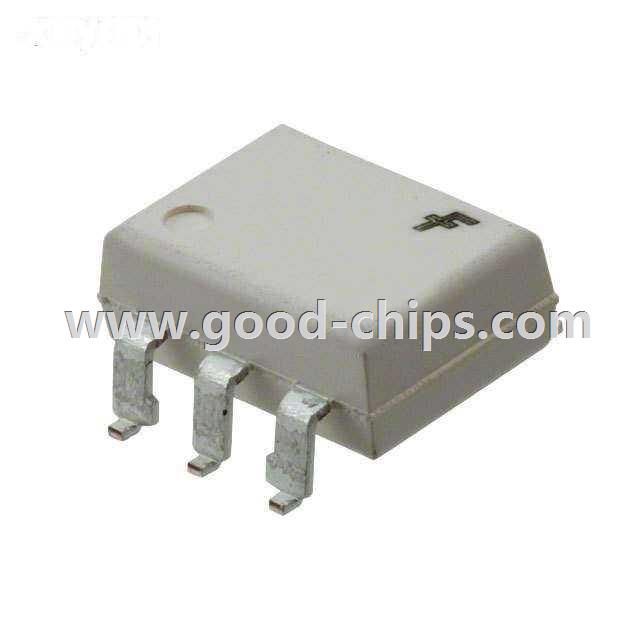

| Manufacturer Part Number: | H11N1SVM |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9670 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 5MHz Open Collector 4170Vrms 1 Channel 6-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H11N1SVM Datasheet |
| Internal Part Number | 898-H11N1SVM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Update 11/Jun/2014 | |
| Online Catalog | H11N1M/2M/3M Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 4170Vrms | |
| Common Mode Transient Immunity (Min) | - | |
| Input Type | DC | |
| Output Type | Open Collector | |
| Current - Output / Channel | 50mA | |
| Data Rate | 5MHz | |
| Propagation Delay tpLH / tpHL (Max) | 330ns, 330ns | |
| Rise / Fall Time (Typ) | 7.5ns, 12ns | |
| Voltage - Forward (Vf) (Typ) | 1.4V | |
| Current - DC Forward (If) (Max) | 30mA | |
| Voltage - Supply | 4 V ~ 15 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, Gull Wing | |
| Supplier Device Package | 6-SMD | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H11N1SVM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H11N1SVM is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of H11N1SVM is new and unused, you can buy H11N1SVM Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H11N1SVM.
