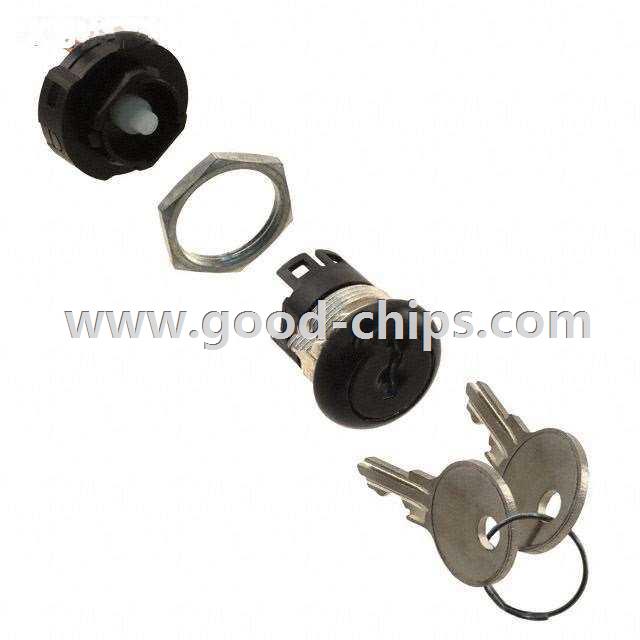

| Manufacturer Part Number: | H1011U2F205NQ |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Keylock Switches |
| Available Quantity: | 9207 Pieces |
| Unit Price: | Quote by Email |
| Description: | Keylock Switch 2 Position SPDT 12A (AC), 1A (DC) 125V (AC) 125V (DC) Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H1011U2F205NQ Datasheet |
| Internal Part Number | 898-H1011U2F205NQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| Online Catalog | H Series | |
| Category | Switches | |
| Family | Keylock Switches | |
| Manufacturer | C&K Components | |
| Series | H | |
| Part Status | Active | |
| Circuit | SPDT | |
| Number of Positions | 2 | |
| Switch Function | On-On | |
| Contact Timing | Not Specified | |
| Current Rating | 12A (AC), 1A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Flat Key | |
| Key Removable Positions | All | |
| Angle of Throw | 90° | |
| Contact Material | Copper | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Quick Connect - 0.110" (2.8mm) | |
| Panel Cutout Dimensions | Circular - 19.30mm Dia | |
| Features | Epoxy Sealed Terminals | |
| Depth Behind Flange | 36.61mm | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H1011U2F205NQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H1011U2F205NQ is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of H1011U2F205NQ is new and unused, you can buy H1011U2F205NQ C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H1011U2F205NQ.
