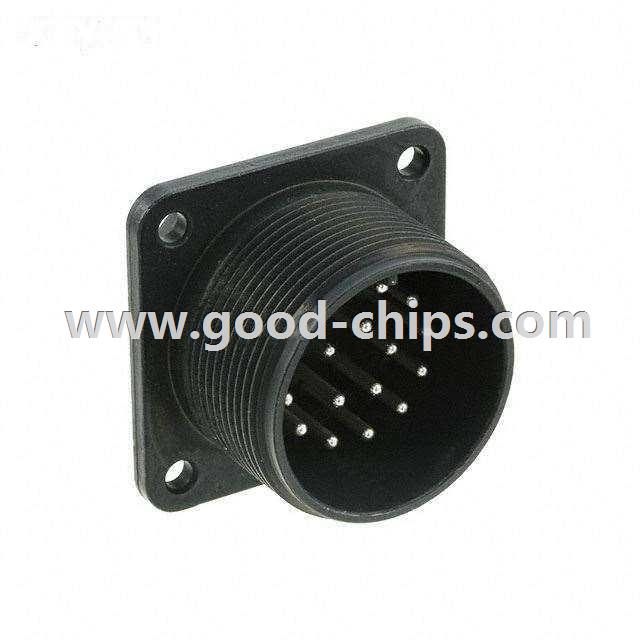

Manufacturer Part Number: | H/MS3102A20-29PW(74) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Circular Connectors |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |
Description: | 17 Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | H/MS3102A20-29PW(74) Datasheet |
Internal Part Number | 898-H/MS3102A20-29PW(74) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Waterproof Power Connectors - Hirose | |
Online Catalog | H/MS Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | H/MS | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Male Pins | |
Number of Positions | 17 | |
Shell Size - Insert | 20-29 | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount, Flange | |
Termination | Solder Cup | |
Fastening Type | Threaded | |
Orientation | W | |
Ingress Protection | IP67/68 - Dust Tight, Waterproof | |
Shell Material, Finish | Aluminum Alloy, Black Chromate Plated | |
Contact Finish | Silver | |
Features | - | |
Contact Finish Thickness | - | |
Current Rating | 13A | |
Voltage - Rated | 500VAC, 700VDC | |
Operating Temperature | -40°C ~ 125°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | H/MS3102A20-29PW(74) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
H/MS3102A20-29PW(74) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of H/MS3102A20-29PW(74) is new and unused, you can buy H/MS3102A20-29PW(74) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H/MS3102A20-29PW(74).
