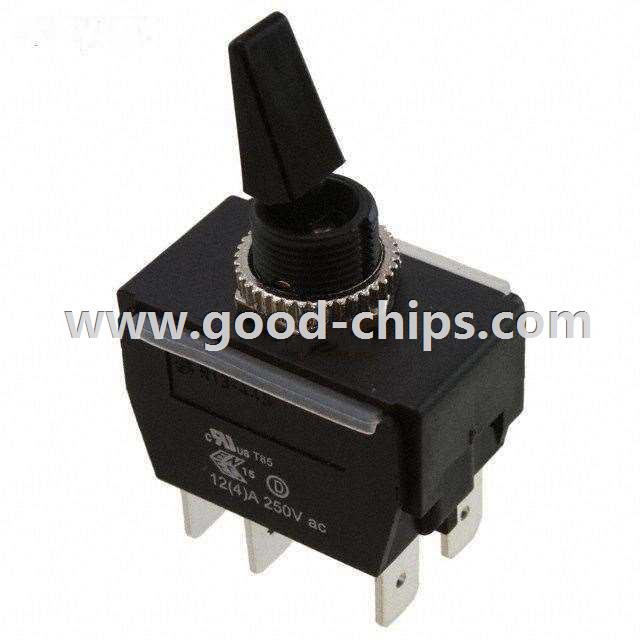

| Manufacturer Part Number: | GTS448B301AHR |
|---|---|
| Manufacturer: | CW Industries |
| Product Category: | Toggle Switches |
| Available Quantity: | 9662 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch DPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GTS448B301AHR Datasheet |
| Internal Part Number | 898-GTS448B301AHR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | GTS447 and GTS448 Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | CW Industries | |
| Series | GTS448 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 12A (AC) | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | - | |
| Actuator Type | Flatted | |
| Actuator Length | 17.00mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Panel Cutout Dimensions | Circular - 12.20mm Dia | |
| Bushing Thread | 15/32-32 | |
| Ingress Protection | IP56 - Dust Protected, Water Resistant | |
| Features | - | |
| Actuator Material | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Temperature | 0°C ~ 85°C | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GTS448B301AHR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GTS448B301AHR is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of GTS448B301AHR is new and unused, you can buy GTS448B301AHR CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GTS448B301AHR.
