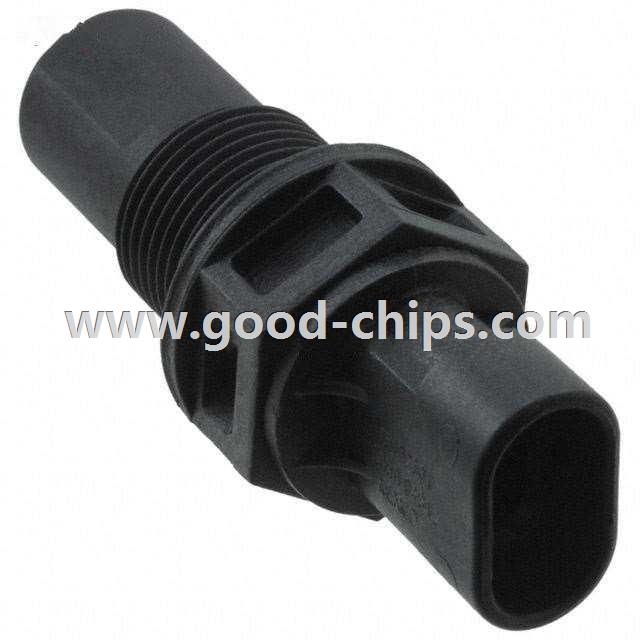

Manufacturer Part Number: | GS102301 |
---|---|
Manufacturer: | Cherry |
Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Magnetic Hall Effect Sensor Ferrous Metals, Gear Tooth Digital Connector |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | GS102301 Datasheet |
Internal Part Number | 898-GS102301 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | GS102301 Series | |
Category | Sensors, Transducers | |
Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
Manufacturer | Cherry | |
Series | - | |
Part Status | Active | |
Output Type | Digital | |
Type | Hall Effect Sensor | |
Actuator Material | Ferrous Metals, Gear Tooth | |
Termination Style | Connector | |
Frequency | 15kHz | |
Voltage - Supply | 9 V ~ 16 V | |
Must Operate | - | |
Must Release | - | |
Operating Temperature | -40°C ~ 140°C (TA) | |
Package / Case | - | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | GS102301 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
GS102301 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of GS102301 is new and unused, you can buy GS102301 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GS102301.
