| Manufacturer Part Number: | GS100701 |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
| Available Quantity: | 9157 Pieces |
| Unit Price: | Quote by Email |

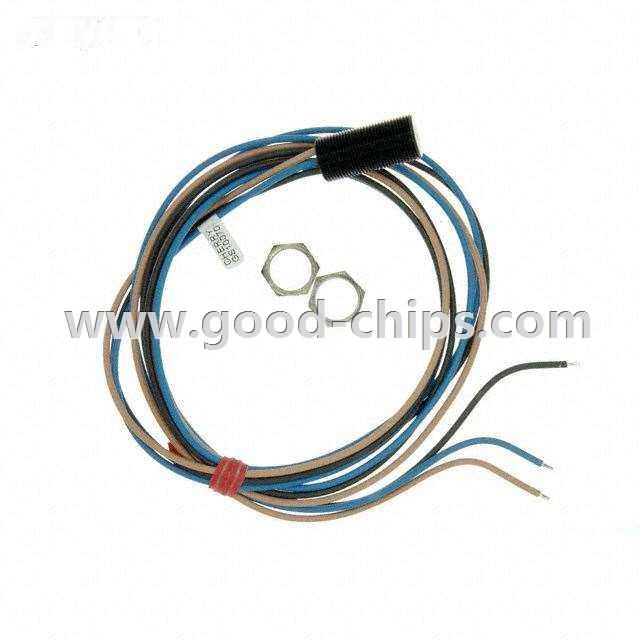

| Description: | Magnetic Hall Effect Sensor Ferrous Metals, Gear Tooth Digital Wire Leads Barrel, Aluminum |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GS100701 Datasheet |
| Internal Part Number | 898-GS100701 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Devices 15/Dec/2010 | |
| Online Catalog | GS1005 and GS1007 Series | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
| Manufacturer | Cherry | |
| Series | - | |
| Part Status | Active | |
| Output Type | Digital | |
| Type | Hall Effect Sensor | |
| Actuator Material | Ferrous Metals, Gear Tooth | |
| Termination Style | Wire Leads | |
| Frequency | 15kHz | |
| Voltage - Supply | 5 V ~ 24 V | |
| Must Operate | - | |
| Must Release | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Package / Case | Barrel, Aluminum | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GS100701 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GS100701 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of GS100701 is new and unused, you can buy GS100701 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GS100701.
