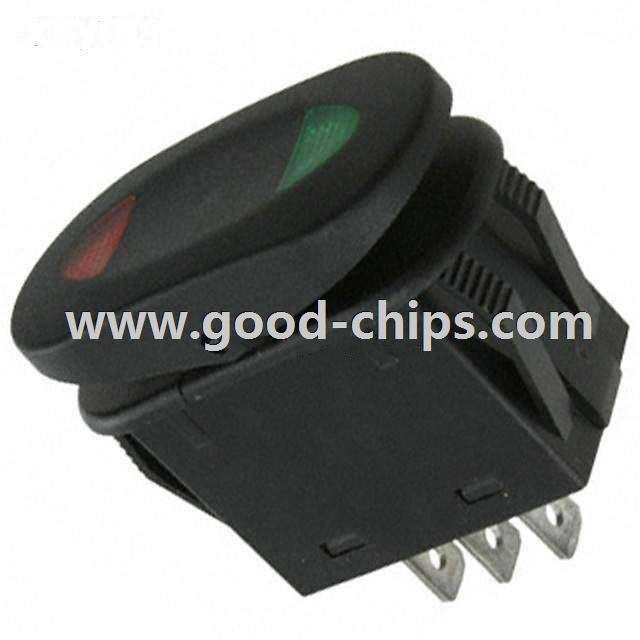

| Manufacturer Part Number: | GRB271D3BBGR2D1 |
|---|---|
| Manufacturer: | CW Industries |
| Product Category: | Rocker Switches |
| Available Quantity: | 9512 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GRB271D3BBGR2D1 Datasheet |
| Internal Part Number | 898-GRB271D3BBGR2D1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Ingress Protection (IP) Rated Sealed Switches | |
| Featured Product | Sealed Switches | |
| Online Catalog | GRB Series | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | CW Industries | |
| Series | GRB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Off-On | |
| Current Rating | 21A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 14V | |
| Actuator Type | Flat - Illuminated | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | LED, Red/Green | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | IP66 - Dust Tight, Water Resistant | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 36.60mm x 21.20mm | |
| Operating Temperature | -20°C ~ 85°C | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GRB271D3BBGR2D1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GRB271D3BBGR2D1 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of GRB271D3BBGR2D1 is new and unused, you can buy GRB271D3BBGR2D1 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GRB271D3BBGR2D1.
