| Manufacturer Part Number: | GC5016-PBZ |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | RF Mixers |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Mixer IC Cellular, CDMA2000, W-CDMA Up/Down Converter 252-BGA (17x17) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GC5016-PBZ Datasheet |
| Internal Part Number | 898-GC5016-PBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF: RFID Technology and Applications | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 16/Jun/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Mixers | |
| Manufacturer | Texas Instruments | |
| Series | GC5016 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| RF Type | Cellular, CDMA2000, W-CDMA | |
| Frequency | - | |
| Number of Mixers | 4 | |
| Gain | - | |
| Noise Figure | - | |
| Secondary Attributes | Up/Down Converter | |
| Current - Supply | - | |
| Voltage - Supply | - | |

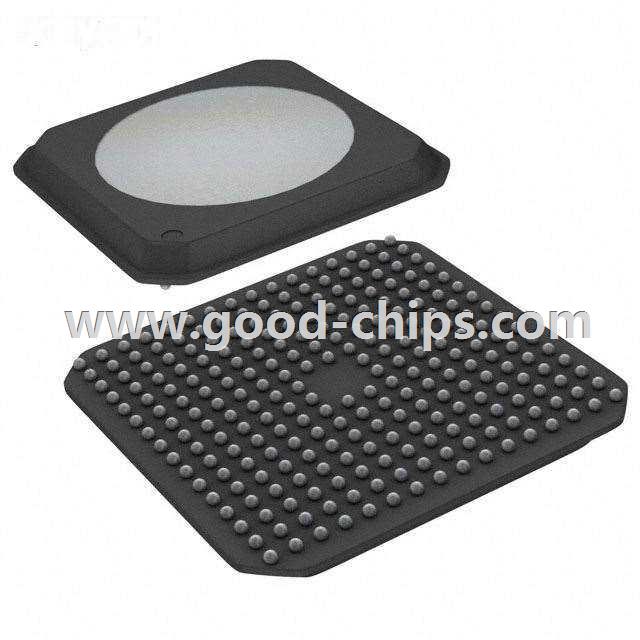

| Package / Case | 252-BGA Exposed Pad | |
| Supplier Device Package | 252-BGA (17x17) | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GC5016-PBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GC5016-PBZ is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of GC5016-PBZ is new and unused, you can buy GC5016-PBZ Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GC5016-PBZ.
