Manufacturer Part Number: | GBC05SGSN-M89 |
---|---|
Manufacturer: | Sullins Connector Solutions |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

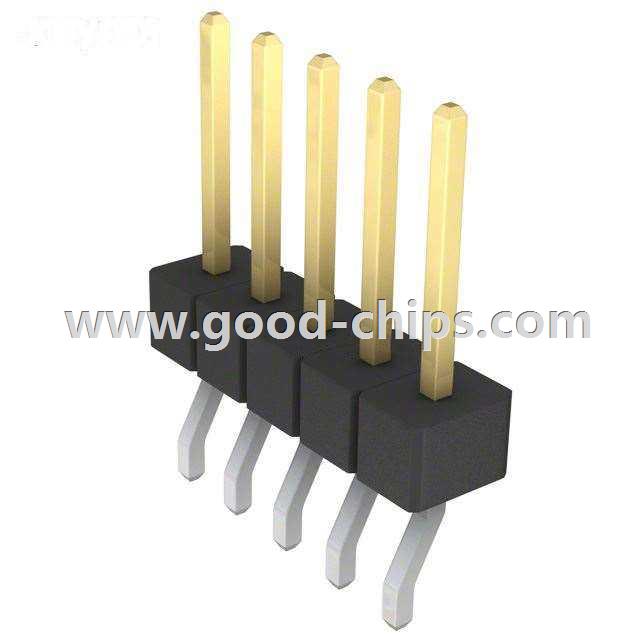

Description: | 5 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | GBC05SGSN-M89 Datasheet |
Internal Part Number | 898-GBC05SGSN-M89 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Hi-Temp Headers and Card Edge Connectors | |
PCN Design/Specification | Temp/Time for Nylon 9T 27/Oct/2010 | |
Online Catalog | GxC and PxC | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Sullins Connector Solutions | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Unshrouded, Breakaway | |
Number of Positions | 5 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | 0.318" (8.08mm) | |
Mounting Type | Surface Mount, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | GBC05SGSN-M89 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
GBC05SGSN-M89 is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of GBC05SGSN-M89 is new and unused, you can buy GBC05SGSN-M89 Sullins Connector Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GBC05SGSN-M89.
