Manufacturer Part Number: | GA10SICP12-263 |
---|---|
Manufacturer: | GeneSiC Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9396 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS SJT 1200V 25A TO263-7 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | GA10SICP12-263 Datasheet |
Internal Part Number | 898-GA10SICP12-263 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Silicon Carbide (SiC) Super Junction FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | GeneSiC Semiconductor | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
FET Type | Junction Transistor, Normally Off | |
FET Feature | Silicon Carbide (SiC) | |
Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
Current - Continuous Drain (Id) @ 25°C | 25A (Tc) | |
Rds On (Max) @ Id, Vgs | 100 mOhm @ 10A | |
Vgs(th) (Max) @ Id | - | |
Gate Charge (Qg) @ Vgs | - | |
Input Capacitance (Ciss) @ Vds | 1403pF @ 800V | |
Power - Max | 170W | |
Operating Temperature | 175°C (TJ) | |
Mounting Type | Surface Mount | |

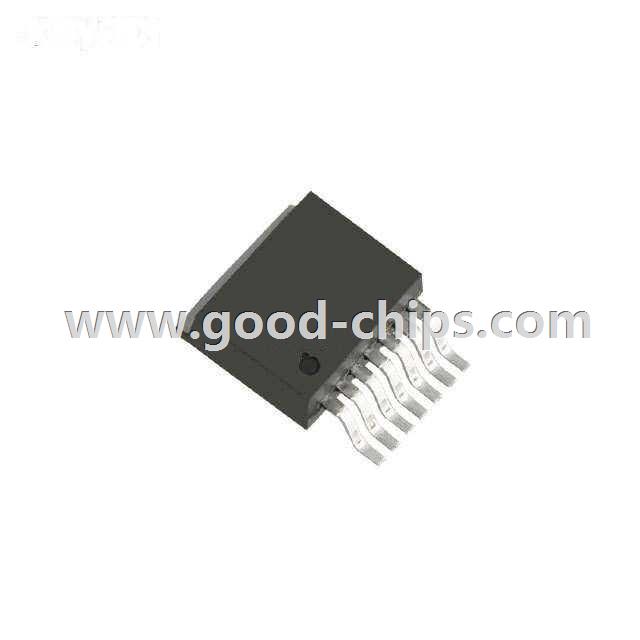

Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | |
Supplier Device Package | D2PAK (7-Lead) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | GA10SICP12-263 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
GA10SICP12-263 is in stock for immediate shipping now. We are the distributor of GeneSiC Semiconductor all series components. The condition of GA10SICP12-263 is new and unused, you can buy GA10SICP12-263 GeneSiC Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GA10SICP12-263.
