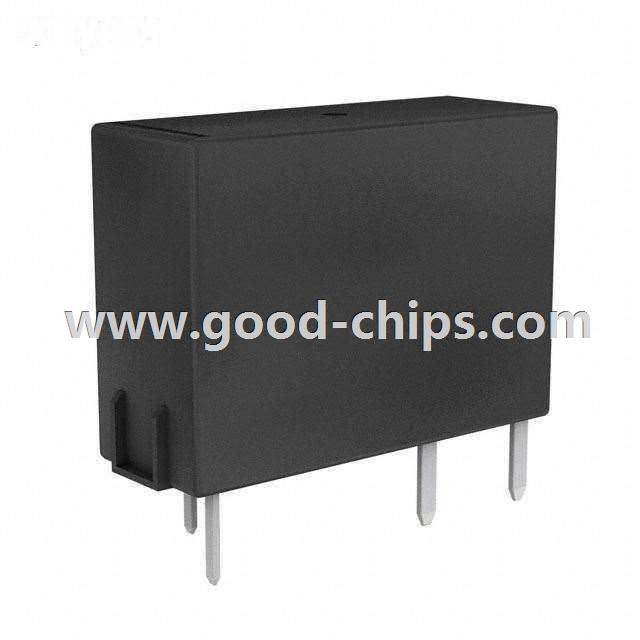

Manufacturer Part Number: | G6D-1A-DC24 |
---|---|
Manufacturer: | Omron Electronics Inc-EMC Div |
Product Category: | Power Relays, Over 2 Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | G6D-1A-DC24 Datasheet |
Internal Part Number | 898-G6D-1A-DC24 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | How to Read Date Codes | |
Category | Relays | |
Family | Power Relays, Over 2 Amps | |
Manufacturer | Omron Electronics Inc-EMC Div | |
Series | G6D | |
Packaging | Bulk | |
Part Status | Obsolete | |
Relay Type | General Purpose | |
Coil Type | Non Latching | |
Coil Current | 8.3mA | |
Coil Voltage | 24VDC | |
Contact Form | SPST-NO (1 Form A) | |
Contact Rating (Current) | 5A | |
Switching Voltage | 250VAC, 30VDC - Max | |
Turn On Voltage (Max) | 16.8 VDC | |
Turn Off Voltage (Min) | 2.4 VDC | |
Operate Time | 10ms | |
Release Time | 10ms | |
Features | Sealed - Fully | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Contact Material | Silver Alloy | |
Coil Power | 200 mW | |
Coil Resistance | 2.88 kOhms | |
Operating Temperature | -25°C ~ 70°C | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | G6D-1A-DC24 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
G6D-1A-DC24 is in stock for immediate shipping now. We are the distributor of Omron Electronics Inc-EMC Div all series components. The condition of G6D-1A-DC24 is new and unused, you can buy G6D-1A-DC24 Omron Electronics Inc-EMC Div with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for G6D-1A-DC24.
